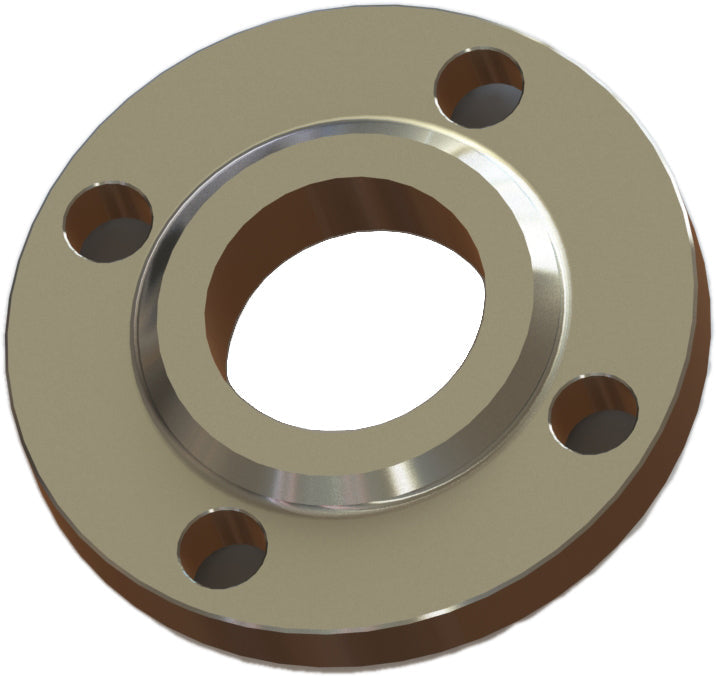

FS150SS-6 by Campbell Fittings | Slip-On Flange | 1-1/2" 150# Flange x 1-1/2" Weld End | 316 Stainless Steel

FS150SS-6 by Campbell Fittings | Slip-On Flange | 1-1/2" 150# Flange x 1-1/2" Weld End | 316 Stainless Steel

Save $34.95 Save $34.95
$87.37
$87.37 - $87.37
$87.37
$52.42
$52.42 - $52.42
$52.42

by Campbell
Crimpnology Nipple:FS150SS Flange-Slip On (150lb.)
Specifications for Variant SKU: FS150SS-6 Campbell Fittings
Series: FS150S Series
Ends Configuration: 1-1/2in 150# Flange, 1-1/2in Weld End
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
FS150SS-4 1"
FS150SS-6 1-1/2"
FS150SS-8 2"
FS150SS-10 2-1/2"
FS150SS-12 3"
FS150SS-16 4"
FS150SS-24 6"
FS150SS-32 8"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
