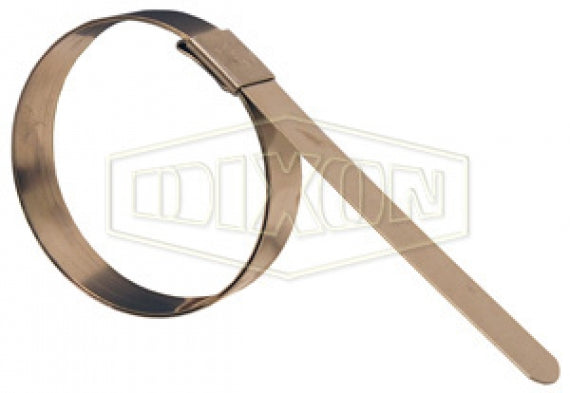

FS24 by Dixon Valve | F-Series | Pre-Formed Center Punch Band Clamp | 5/8" Band Width | 6" Clamp ID | 300 Stainless Steel Band | 302 Stainless Steel Buckle | Box of 25

Save $13.92

$125.25

$125.25 - $125.25

$125.25

$111.33

$111.33 - $111.33

$111.33

Dixon Valve
Pre-Formed Center Punch Band Clamps | F-Series

Package Quantity: 25 EA

Quantity

Specifications for Variant SKU: FS24 Dixon \| 25 \|
Series:	F-Series
Material(s):	300 Stainless Steel, 302 Stainless Steel
Clamp Thickness:	0.022
Clamp Width:	0.625
Maximum Clamp I.D.:	6

Installation Tools:
Install with center punch tools: F1 F38, F40, and F100. Other manufacturers' punch style tools may also be used.
Materials:
On stainless clamps, bands are 300-series stainless steel, buckles are 302-series stainless steel.

Part Number	Material	Band Width	Clamp ID	Band Thickness
FS3	Stainless Steel	3/8"	13/16"	.020"
FS311	Stainless Steel	3/8"	1-3/8"	.020"
FS4	Stainless Steel	5/8"	1"	.022"
FS5	Stainless Steel	5/8"	1-1/4"	.022"
FS6	Stainless Steel	5/8"	1-1/2"	.022"
FS7	Stainless Steel	5/8"	1-3/4"	.022"
FS8	Stainless Steel	5/8"	2"	.022"
FS9	Stainless Steel	5/8"	2-1/4"	.022"
FS10	Stainless Steel	5/8"	2-1/2"	.022"
FS11	Stainless Steel	5/8"	2-3/4"	.022"
FS12	Stainless Steel	5/8"	3"	.022"
FS14	Stainless Steel	5/8"	3-1/2"	.022"
FS16	Stainless Steel	5/8"	4"	.022"
FS18	Stainless Steel	5/8"	4-1/2"	.022"
FS20	Stainless Steel	5/8"	5"	.022"
FS24	Stainless Steel	5/8"	6"	.022"
FS28	Stainless Steel	5/8"	7"	.022"
FS32	Stainless Steel	5/8"	8"	.022"

F3	Galvanized Steel	3/8"	13/16"	.025"
F311	Galvanized Steel	3/8"	1-3/8"	.025"
F4	Galvanized Steel	5/8"	1"	.025"
F5	Galvanized Steel	5/8"	1-1/4"	.025"
F6	Galvanized Steel	5/8"	1-1/2"	.031"
F7	Galvanized Steel	5/8"	1-3/4"	.031"
F8	Galvanized Steel	5/8"	2"	.031"
F9	Galvanized Steel	5/8"	2-1/4"	.031"
F10	Galvanized Steel	5/8"	2-1/2"	.031"
F11	Galvanized Steel	5/8"	2-3/4"	.031"
F12	Galvanized Steel	5/8"	3"	.031"
F14	Galvanized Steel	5/8"	3-1/2"	.031"
F16	Galvanized Steel	5/8"	4"	.031"
F18	Galvanized Steel	5/8"	4-1/2"	.031"
F20	Galvanized Steel	5/8"	5"	.031"
F24	Galvanized Steel	5/8"	6"	.031"
F28	Galvanized Steel	5/8"	7"	.031"
F32	Galvanized Steel	5/8"	8"	.031"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
