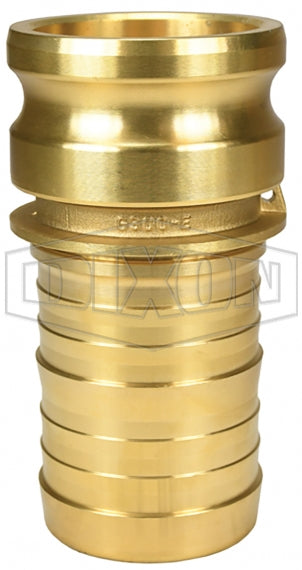

G100-E-BRCR by Dixon Valve | Global Crimp Style Cam & Groove | Type E | 1" Adapter x 1" Hose Shank | C38000 Forged Brass

G100-E-BRCR by Dixon Valve | Global Crimp Style Cam & Groove | Type E | 1" Adapter x 1" Hose Shank | C38000 Forged Brass

Save $1.79 Save $1.79
$21.18
$21.18 - $21.18
$21.18
$19.39
$19.39 - $19.39
$19.39

Dixon Valve & Coupling
Global Crimp Style Cam & Groove | Type E | Adapter x Hose Shank

Designed for use with liquids.

Suitable for use with King Crimp sleeves and ferrules.
Specifications for Variant SKU: G100-E-BRCR Dixon
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 1in Male Cam & Groove, 1in Hose Barb
Material(s): Brass
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
A380 Permanent Mold Aluminum
Part Number		 C38000 Forged Brass
Part Number		 316 Investment Cast Stainless Steel
Part Number		 Hose I.D.
G100-E-ALCR G100-E-BRCR G100-E-SSCR 1"
G150-E-ALCR G150-E-BRCR G150-E-SSCR 1-1/2"
G200-E-ALCR G200-E-BRCR G200-E-SSCR 2"
G300-E-ALCR G300-E-BRCR G300-E-SSCR 3"
G400-E-ALCR G400-E-BRCR G400-E-SSCR 4"
G600-E-ALCR - G600-E-SSCR 6"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
