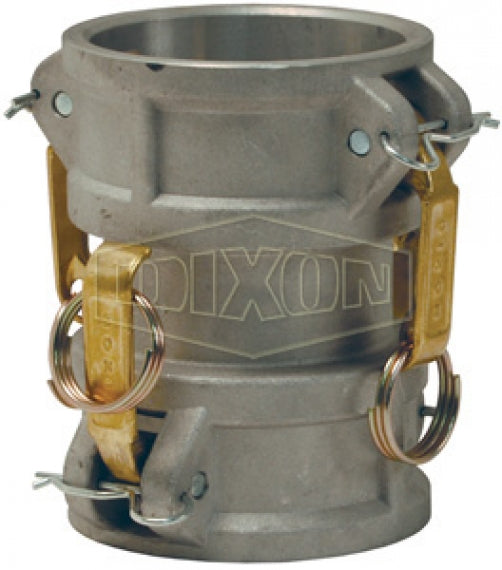

G200-DD-AL by Dixon Valve | Global Cam & Groove Spool Coupler | Type DD | 2" Coupler x 2" Coupler | A380 Permanent Mold Aluminum

G200-DD-AL by Dixon Valve | Global Cam & Groove Spool Coupler | Type DD | 2" Coupler x 2" Coupler | A380 Permanent Mold Aluminum

Save $32.35 Save $32.35
$80.88
$80.88 - $80.88
$80.88
$48.53
$48.53 - $48.53
$48.53

Dixon Valve
Global Cam & Groove | Type DD | Spool Coupler | Coupler x Coupler

Designed for use with liquids.
Specifications for Variant SKU: G200-DD-AL Dixon
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Female Cam & Groove, 2in Female Cam & Groove, Some Ends Match
Material(s): Aluminum
Construction:
  • Made to Dixon specifications and branded Dixon.
  • Nitrile rubber seals standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Coupler x Coupler Size Max. Operating Pressure
G200-DD-AL G200-DD-SS 2" x 2" 250 PSI
G300-DD-AL G300-DD-SS 3" x 3" 125 PSI
G400-DD-AL G400-DD-SS 4" x 4" 100 PSI
