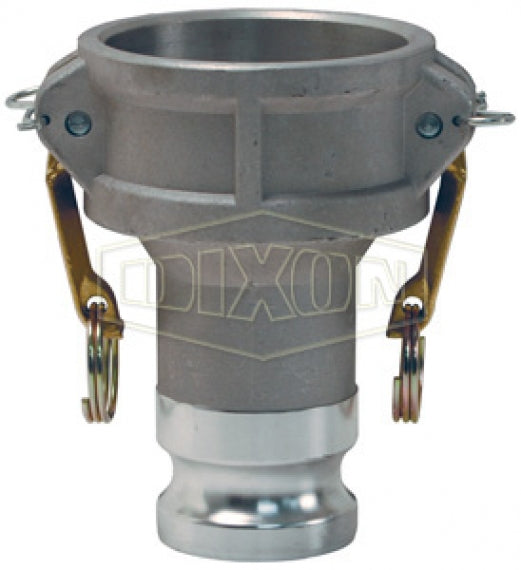

G6040-DA-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Coupling | Type DA | 6" Coupler x 4" Adapter | A380 Permanent Mold Aluminum

G6040-DA-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Coupling | Type DA | 6" Coupler x 4" Adapter | A380 Permanent Mold Aluminum

Save $86.45 Save $86.45
$216.13
$216.13 - $216.13
$216.13
$129.68
$129.68 - $129.68
$129.68

Dixon Valve
Global Cam & Groove | Type DA | Reducer (Jump Size) Coupling

Designed for use with liquids.
Specifications for Variant SKU: G6040-DA-AL Dixon
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 4in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile Rubber seals.
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Coupler x Adapter Size Max. Operating Pressure
G2030-DA-AL - 2" x 3" 125 PSI
G3020-DA-AL G3020-DA-SS 3" x 2" 125 PSI
G3040-DA-AL - 3" x 4" 125 PSI
G4030-DA-AL G4030-DA-SS 4" x 3" 100 PSI
G5040-DA-AL - 5" x 4" 75 PSI
G6040-DA-AL - 6" x 4" 125 PSI
