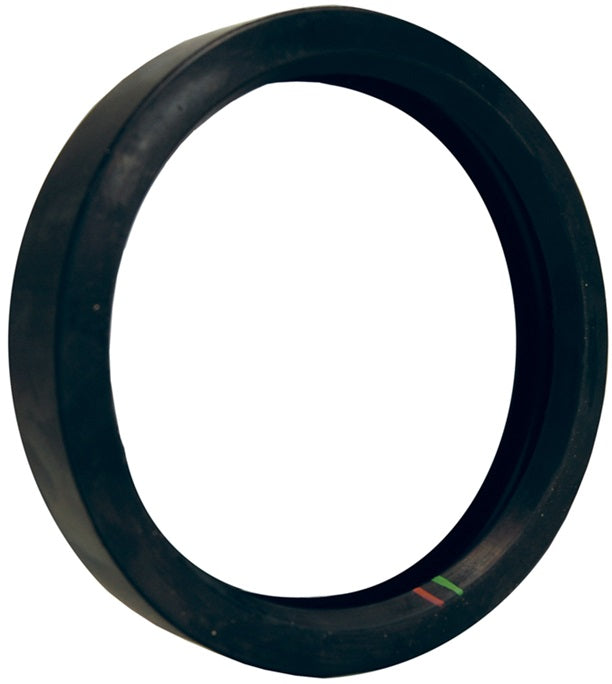

G800E by Dixon Valve | Grooved Fitting Gasket | 8" Size | EPDM

G800E by Dixon Valve | Grooved Fitting Gasket | 8" Size | EPDM

Save $17.13 Save $17.13
$42.82
$42.82 - $42.82
$42.82
$25.69
$25.69 - $25.69
$25.69

Dixon Valve
Grooved Fitting Gasket | EPDM

For use with water, dilute acids, alkalis, salts and many chemical services not involving hydrocarbons, oils or gases.
Specifications for Variant SKU: G800E Dixon
Seal Material(s): EPDM
Features:
  • Color code: black with green stripe.
  • Excellent oxidation resistance.
Construction:
  • EPDM.
Safety Notes:
  • Use lubricant on gasket.
  • Not for use with hydrocarbons.
  • Check gasket color code to be certain it is recommended for the service intended.
  • For services not listed contact Dixon for recommendations.
Specification:
  • Temperature range: -22°F to 230°F (-30°C to 110°C)
EPDM
Part Number		 Size
G150E 1-1/2"
G200E 2"
G250E 2-1/2"
G300E 3"
G400E 4"
G500E 5"
G600E 6"
G800E 8"
G1000E 10"
G1200E 12"
