GA23912-8-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
GA23912-8-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
GA23912-8-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
GA23912-8-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

GA23912-8-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

$25.21 - $25.21
$25.21
$25.21 - $25.21
$25.21

Danfoss A/C & Refrigeration

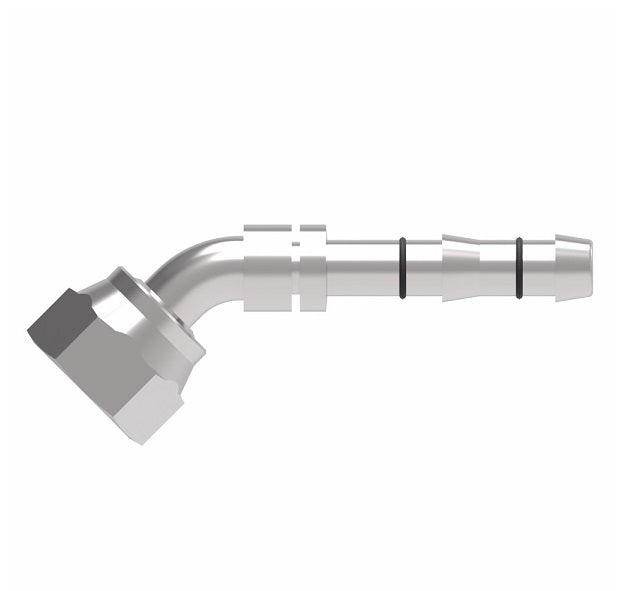

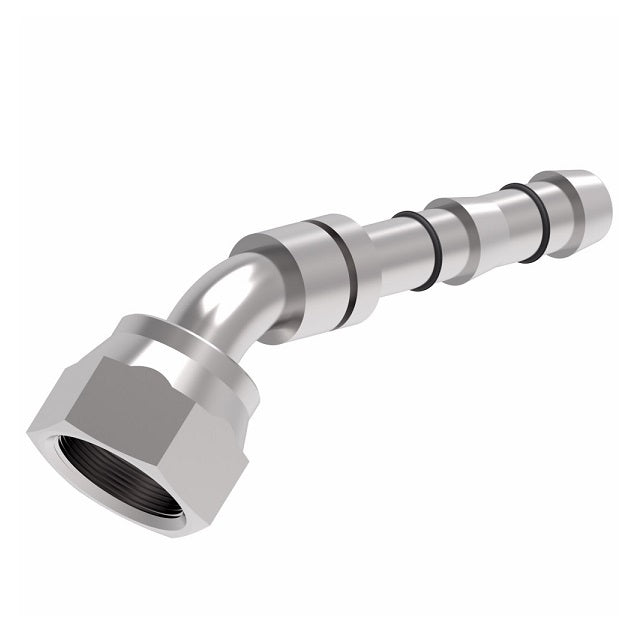

E-Z Clip System - Female ORS Swivel - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: GA23912-8-8 Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3161-05-0404S 9/16-18 -04 1.86" 1.01" 0.41" 0.69" FF14175
FJ3161-01-0606S 11/16-16 -06 2.65" 1.12" 0.44" 0.81" FF14171
FJ3161-02-0808S 13/16-16 -08 3.02" 1.47" 0.59" 0.94" FF14172
FJ3161-03-1010S 1-14 -10 3.22" 1.67" 0.70" 1.13" FF14173
FJ3161-04-1008S 1-14 -08 3.32" 1.78" 0.70" 1.13" FF14172
GA23912-10-8* 1-14 -08 3.50" 1.96" 0.68" 30mm FF14172
GA23912-10-10* 1-14 -10 3.77" 2.22" 0.68" 30mm FF14173
GA23912-12-12* 1-3/16-12 -12 4.23" 2.65" 0.83" 36mm FF14174
GA23912-8-8* 13/16-16 -08 3.43" 1.89" 0.59" 30mm FF14172

* GA Part numbers have a metric hex

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
