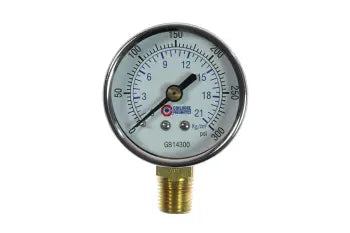

GB14300 by Coilhose | Pressure Gauge | 2" Chrome Dial Gauge | 1/4" Bottom Mount | 0-300 PSI

GB14300 by Coilhose | Pressure Gauge | 2" Chrome Dial Gauge | 1/4" Bottom Mount | 0-300 PSI

Save $1.73 Save $1.73
$15.60
$15.60 - $15.60
$15.60
$13.87
$13.87 - $13.87
$13.87
Coilhose Pneumatics - Filters, Regulators & Lubricators - Pressure Gauges
Specifications for Variant SKU: GB14300 Coilhose
Material(s): Chrome Plated, Glass
Overview:
  • Pressure gauges are an invaluable tool to air system performance. Coilhose Pneumatics offers a wide variety of sizes to meet many applications. All gauges are dry type with either polycarbonate or metal cases and polycarbonate or glass lenses. Accuracy is 3-2-3%. Gauges are available in both back mount and bottom mount.

Model Case Dial Size Lens Mounting Location Port Size Pressure Range
MG12160 Aluminum 1-1/2" Polycarbonate Back Mount 1/8" 0-160 PSI
26G-60 Metal 1-1/2" Polycarbonate Back Mount 1/8" 0-60 PSI
8800-60 Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-60 PSI
8800-160 Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-160 PSI
8800-160-DL Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-160 PSI
8800-300 Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-300 PSI
GB1430 Chrome Plated 2" Glass Bottom Mount 1/4" 0-30 PSI
GB1630 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-30 PSI
GB16300 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-300 PSI
GB1730 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-30 PSI
8700-60 Chrome Plated 1-1/2" Glass Back Mount 1/8" 0-60 PSI
GB1860 Chrome Plated 2" Glass Bottom Mount 1/8" 0-60 PSI
GB1460 Chrome Plated 2" Glass Bottom Mount 1/4" 0-60 PSI
GB1660 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-60 PSI
GB1760 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-60 PSI
GB14100 Chrome Plated 2" Glass Bottom Mount 1/4" 0-100 PSI
GB16100 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-100 PSI
GB17100 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-100 PSI
8700-160 Chrome Plated 1-1/2" Glass Back Mount 1/8" 0-160 PSI
G18160 Chrome Plated 2" Glass Back Mount 1/8" 0-160 PSI
GB18160 Chrome Plated 2" Glass Bottom Mount 1/8" 0-160 PSI
G14160 Chrome Plated 2" Glass Back Mount 1/4" 0-160 PSI
GB14160 Chrome Plated 2" Glass Bottom Mount 1/4" 0-160 PSI
GB16160 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-160 PSI
GB17160 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-160 PSI
GB14200 Chrome Plated 2" Glass Bottom Mount 1/4" 0-200 PSI
GB16200 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-200 PSI
GB17200 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-200 PSI
G14300 Chrome Plated 2" Glass Back Mount 1/4" 0-300 PSI
GB14300 Chrome Plated 2" Glass Bottom Mount 1/4" 0-300 PSI
GB17300 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-300 PSI
GB17600 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-600 PSI
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
