GC09-6x8 Couplamatic Grip Crimp Coupling - JIC 37° - Female Swivel - 3/8" Hose ID - 3/4x16 Thread Size

GC09-6x8 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 3/4x16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 20

Save $10.72

$96.49

$96.49 - $96.49

$96.49

$85.77

$85.77 - $85.77

$85.77

Couplamatic Systems Inc.
Grip Crimp Series - JIC 37° - Female Swivel

Package Quantity: 20 EA

Quantity

Specifications for Variant SKU: GC09-6x8 Couplamatic \| 20 \|
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

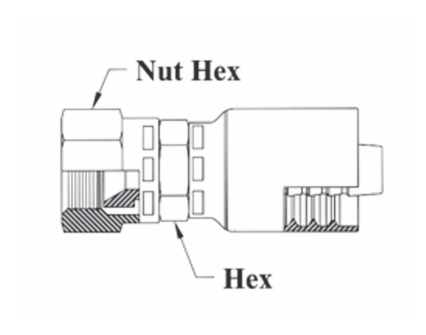

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Gates Mega	Parker 43
GC09-4x4	1/4"	7/16x20	1/4"	9/16"	9/16"	4G-4FJX	10643-4-4
GC09-4x5	1/4"	1/2x20	5/16"	9/16"	5/8"	4G-5FJX	10643-5-4
GC09-4x6	1/4"	9/16x18	3/8"	9/16"	11/16"	4G-6FJX	10643-6-4
GC09-6x4	3/8"	7/16x20	1/4"	11/16"	9/16"	6G-4FJX	10643-4-6
GC09-6x6	3/8"	9/16x18	3/8"	11/16"	11/16"	6G-6FJX	10643-6-6
GC09-6x8	3/8"	3/4x16	1/2"	11/16"	7/8"	6G-8FJX	10643-8-6
GC09-6x10	3/8"	7/8x14	5/8"	7/8"	1"	6G-10FJX	10643-10-6
GC09-6x12	3/8"	1-1/16x12	3/4"	1"	1-1/4"	6G-12FJX	10643-12-6
GC09-8x6	1/2"	9/16x18	3/8"	7/8"	11/16"	8G-6FJX	10643-6-8
GC09-8x8	1/2"	3/4x16	1/2"	7/8"	7/8"	8G-8FJX	10643-8-8
GC09-8x10	1/2"	7/8x14	5/8"	7/8"	1"	8G-10FJX	10643-10-8
GC09-8x12	1/2"	1-1/16x12	3/4"	1-1/8"	1-1/4"	8G-12FJX	10643-12-8
GC09-8x16	1/2"	1-5/16x12	1"	1-1/4"	1-1/2"	8G-16FJX	10643-16-8
GC09-10x8	5/8"	3/4x16	1/2"	15/16"	7/8"	10G-8FJX	10643-8-10
GC09-10x10	5/8"	7/8x14	5/8"	15/16"	1"	10G-10FJX	10643-10-10
GC09-10x12	5/8"	1-1/16x12	3/4"	1-1/8"	1-1/4"	10G-12FJX	10643-12-10
GC09-12x10	3/4"	7/8x14	5/8"	1-1/8"	1"	12G-10FJX	10643-10-12
GC09-12x12	3/4"	1-1/16x12	3/4"	1-1/8"	1-1/4"	12G-12FJX	10643-12-12
GC09-12x14	3/4"	1-3/16x12	7/8"	1-3/8"	1-1/2"	12G-14FJX	10643-14-12
GC09-12x16	3/4"	1-5/16x12	1"	1-3/8"	1-1/2"	12G-16FJX	10643-16-12
GC09-16x12	1"	1-1/16x12	3/4"	1-3/8"	1-1/4"	16G-12FJX	10643-12-16
GC09-16x16	1"	1-5/16x12	1"	1-3/8"	1-1/2"	16G-16FJX	10643-16-16
GC09-16x20	1"	1-5/8x12	1-1/4"	1-11/16"	2"	16G-20FJX	10643-20-16
GC09-20x20	1-1/4"	1-5/8x12	1-1/4"	1-11/16"	2"	20G-20FJX	10643-20-20
GC09-24x24	1-1/2"	1-7/8x12	1-1/2"	2"	2-1/4"	-	10643-24-24
GC09-32x32	2"	2-1/2x12	2"	2-1/2"	2-7/8"	-	10643-32-32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
