GC27-8x10 Couplamatic Grip Crimp Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 1/2" Hose ID - 7/8x14 Thread Size

GC27-8x10 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 7/8x14 Thread Size JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating

Save $1.61 Save $1.61
$14.49
$14.49 - $14.49
$14.49
$12.88
$12.88 - $12.88
$12.88

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop
Specifications for Variant SKU: GC27-8x10 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 1/2in Hose Barb, 5/8in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

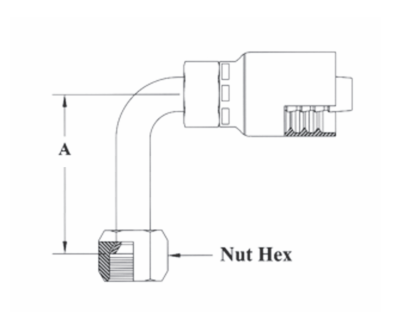

Part Number Hose ID Thread Size Tube OD A Drop Inches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC27-4x4 1/4" 7/16x20 1/4" 1.80" 9/16" 4G-4FJX90L 14143-4-4
GC27-4x5 1/4" 1/2x20 5/16" 1.80" 5/8" - 14143-5-4
GC27-4x6 1/4" 9/16x18 3/8" 2.18" 11/16" - 14143-6-4
GC27-6x4 3/8" 7/16x20 1/4" 1.80" 9/16" - -
GC27-6x6* 3/8" 9/16x18 3/8" 2.18" 11/16" 6G-6FJX90L 14143-6-6
GC27-6x8 3/8" 3/4x16 1/2" 2.50" 7/8" - 14143-8-6
GC27-8x8 1/2" 3/4x16 1/2" 2.50" 7/8" 8G-8FJX90L 14143-8-8
GC27-8x10 1/2" 7/8x14 5/8" 2.75" 1" 8G-10FJX90L 14143-10-8
GC27-10x10 5/8" 7/8x14 5/8" 2.75" 1" - 14143-10-10
GC27-12x12* 3/4" 1-1/16x12 3/4" 3.73" 1-1/4" 12G-12FJX90L 14143-12-12
GC27-16x16 1" 1-5/16x12 1" 4.50" 1-1/2" 16G-16FJX90L 14143-16-16

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
