GC53-12x12 Couplamatic Grip Crimp Coupling - Code 61 Split Flange - 90° Bend - 3/4" Hose ID - 3/4" Flange Size

GC53-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x 3/4" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

Save $15.84 Save $15.84
$39.60
$39.60 - $39.60
$39.60
$23.76
$23.76 - $23.76
$23.76

Couplamatic Systems Inc.
Grip Crimp Series - Code 61 Split Flange - 90° Bend
Specifications for Variant SKU: GC53-12x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Code 61 Flange, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

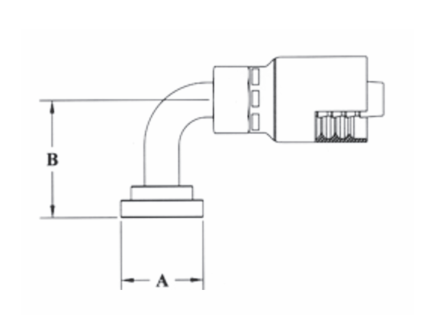

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Gates Mega Parker 43
GC53-8x8 1/2" 1/2" 1.19" 1.62" 8G-8FL90 11943-8-8
GC53-8x12 1/2" 3/4" 1.50" 1.68" 8G-12FL90M 11943-12-8
GC53-12x12 3/4" 3/4" 1.50" 2.12" 12G-12FL90 11943-12-12
GC53-12x16 3/4" 1" 1.75" 2.12" 12G-16FL90 11943-16-12
GC53-16x16 1" 1" 1.75" 2.38" 16G-16FL90 11943-16-16
GC53-16x20 1" 1-1/4" 2.00" 2.38" 16G-20FL90 11943-20-16
GC53-20x20 1-1/4" 1-1/4" 2.00" 2.62" 20G-20FL90 11943-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
