Bulk Hose and Covers > Hydraulic Hose > 2-Wire Hydraulic Hose

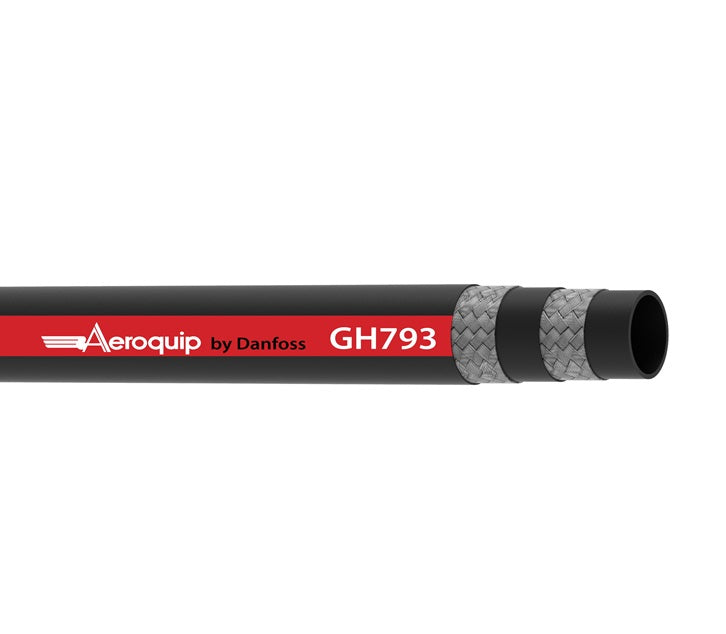

GH793-32 Aeroquip by Danfoss | MatchMate® Global Double Wire Braid Hydraulic Hose | SAE 100R2 | 2.00" ID

Name: GH793-32 Aeroquip by Danfoss | MatchMate® Global Double Wire Braid Hydraulic Hose | SAE 100R2 | 2.00" ID
Brand: Danfoss/Eaton
SKU: GH793-32 Danfoss
Price: 52.59 USD
Availability: InStock

$52.59

Aeroquip® by Danfoss
GH793 Series | MatchMate® Global Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Bulk Lengths may come in multiple sections unless otherwise stated.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH793-32 Danfoss
Brand:	Aeroquip
Series:	GH793 Series
Hose Color(s):	Black
Dash Size:	-32
Internal Diameter:	2in
Outer Diameter:	2.51in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	Applicable MSHA Standards, DNV, EN853, ISO 1436-1, SAE 100R2AT Type S

Hose Properties:
Application:	Hydraulic system service with petroleum and water-based fluids, for general industrial service.	SAE Rating:	Meets: SAE 100R2 Type S, EN 853 (Type 2SN), DIN 2022, Teil 4 (Type 2SN)
Other Ratings:	N/A	Tube:	Special Low Temperature Synthetic Rubber
Reinforcement:	Double Wire Braid	Cover:	DURA-TUFF™ Synthetic Rubber
Temperature Range:	-40°F to +260°F (-40°C to +127°C)

Part Number	Hose ID			Nominal Hose OD		Max. Operating Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
Part Number	DN	mm	in	mm	in	bar	psi	bar	psi	mm	in	kg/m	lbs/ft
GH793-4	6	6,4mm	0.25"	15,2mm	0.60"	448,0 bar 350,0 bar	6500 psi* 5000 psi	1792,0 bar 1400,0 bar	26000 psi* 20000 psi	101,6mm	4.00"	0,39 kg/m	0.26 lbs/ft
GH793-6	10	9,7mm	0.38"	19,1mm	0.75"	400,0 bar 280,0 bar	5800 psi* 4000 psi	1600,0 bar 1120,0 bar	23200 psi* 16000 psi	127,0mm	5.00"	0,57 kg/m	0.38 lbs/ft
GH793-8	12	12,7mm	0.50"	22,1mm	0.87"	345,0 bar 245,0 bar	5000 psi* 3500 psi	1380,0 bar 980,0 bar	20000 psi* 14000 psi	177,8mm	7.00"	0,68 kg/m	0.46 lbs/ft
GH793-10	16	16,0mm	0.63"	24,9mm	0.98"	276,0 bar 192,0 bar	4000 psi* 2750 psi	1104,0 bar 770,0 bar	16000 psi* 11000 psi	203,2mm	8.00"	0,80 kg/m	0.54 lbs/ft
GH793-12	19	19,1mm	0.75"	29,5mm	1.16"	241,0 bar 157,0 bar	3500 psi* 2250 psi	964,0 bar 630,0 bar	14000 psi* 9000 psi	241,3mm	9.50"	0,98 kg/m	0.66 lbs/ft
GH793-16	25	25,4mm	1.00"	38,1mm	1.50"	207,0 bar 140,0 bar	3000 psi* 2000 psi	828,0 bar 560,0 bar	12000 psi* 8000 psi	304,8mm	12.00"	1,50 kg/m	1.01 lbs/ft
GH793-20	31	31,8mm	1.25"	48,8mm	1.92"	172,0 bar	2500 psi	688,0 bar	10000 psi	419,1mm	16.50"	2,29 kg/m	1.54 lbs/ft
GH793-24	38	38,1mm	1.50"	54,6mm	2.15"	138,0 bar	2000 psi	552,0 bar	8000 psi	508,0mm	20.00"	2,50 kg/m	1.68 lbs/ft
GH793-32	51	50,8mm	2.00"	63,8mm	2.51"	110,0 bar	1600 psi	440,0 bar	6400 psi	635,0mm	25.00"	3,30 kg/m	2.22 lbs/ft

* Improved pressure performance when used with global crimp fittings.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
