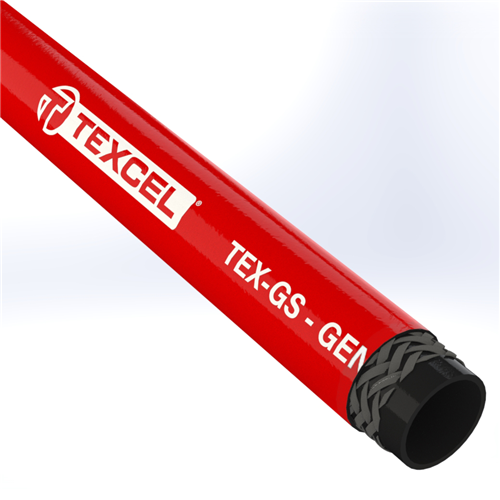

GS-12-C300-200R- by Texcel | TEX-GS Series | General Service Air & Water Hose | 3/4" Hose ID | 300 PSI | Red

$115.91 - $463.64

$115.91

$82.79

$82.79 - $331.17

$82.79

Texcel
TEX-GS Series | General Service Air & Water Hose

Quantity

Specifications for Variant SKU: GS-12-C300-50R- Texcel \| 50 \|
Series:	TEX-GS Series
Hose Color(s):	Red
Internal Diameter:	0.75in
Outer Diameter:	1.14in
Tubing Construction:	EPDM
Cover Construction:	EPDM/SBR Blend

Technical Data:
Description:	A tough, heavy-duty, abrasion and ozone-resistant general service hose. Designed for the transfer of air, mild chemicals and water across multiple applications. The ability to order this product in continuous lengths provides efficiently in inventory controls as well as ease of handling at job sites.	Tube:	Black, EPDM
Cover:	Red, SBR/EPDM	Reinforcement:	One or two braided polyester cords
Safety Factor:	3:1	Temperature:	-20°F to +180°F
Branding:	TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER - XXXPSI WP-LOT (white letters)	Packaging:	Coils are continuous lengths

Part Number	Package Type	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Lbs./Ft
GS-4-R300-600R	Reel	1/4"	33/64"	600'	300	0.12 lbs
GS-4-C300-200R	Coil	1/4"	33/64"	200'	300	0.12 lbs
GS-5-R300-600R	Reel	5/16"	38/64"	600'	300	0.15 lbs
GS-6-R300-600R	Reel	3/8"	43/64"	600'	300	0.19 lbs
GS-6-C300-200R	Coil	3/8"	43/64"	200'	300	0.19 lbs
GS-8-R300-600R	Reel	1/2"	53/64"	600'	300	0.26 lbs
GS-8-C300-200R	Coil	1/2"	53/64"	200'	300	0.26 lbs
GS-10-R300-600R	Reel	5/8"	63/64"	600'	300	0.33 lbs
GS-12-R300-600R	Reel	3/4"	1-9/64"	600'	300	0.45 lbs
GS-12-R300-BL	Reel	3/4"	1-9/64"	-	300	0.45 lbs
GS-12-C300-50R-BL	Coil	3/4"	1-9/64"	-	300	0.45 lbs
GS-12-C300-200R	Coil	3/4"	1-9/64"	-	300	0.45 lbs
GS-16-R300-400R	Reel	1"	1-27/64"	400'	300	0.90 lbs
GS-16-C300-50R	Coil	1"	1-27/64"	50'	300	0.90 lbs
GS-20-R300-300R	Reel	1-1/4"	1-47/64"	300'	300	1.08 lbs
GS-24-R300-250R	Reel	1-1/2"	2-8/64"	250'	300	1.37 lbs
GS-32-R300-200R	Reel	2"	2-38/64"	200'	300	1.61 lbs

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
