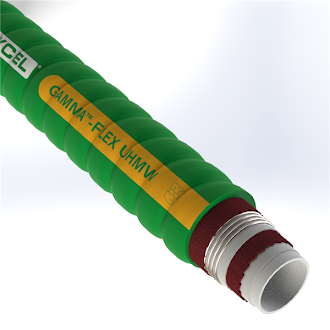

GUH20C1G-1.5-200 by Texcel | GAMMA™-FLEX UHMW Series | Ultra-High Molecular Weight Polyethylene Chemical Hose | 1-1/2" Hose ID | 200 PSI | 29 in/Hg Vacuum Rated | Green

$22.05 - $3,674.19

$22.05

$15.75

$15.75 - $2,624.42

$15.75

GAMMA™ by Texcel
FLEX UHMW Series | Ultra-High Molecular Weight Polyethylene Chemical Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: GUH20C1G-1.5-200 Texcel \| 200 \|
Brand:	GAMMA™
Series:	GAMMA™-FLEX UHMW Series
Hose Color(s):	Green
Internal Diameter:	1.50in
Outer Diameter:	1.95in
Tubing Construction:	Polyethylene
Cover Construction:	EPDM

Chemical Hose

GAMMA™-FLEX UHMW Chemical Suction & Discharge Hose

A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.

1

2

Tube

Clear, ultra-high molecular weight polyethylene (UHMW)

Cover

Blue or green, EPDM (corrugated)

Reinforcement

High tensile tire cord plies; dual helix wire

Temperature Range

-40°F to +250°F (intermittent)

Safety Factor

4:1

Branding

TEXCEL® GAMMA™-FLEX UHMW - CHEMICAL SUCTION AND DISCHARGE HOSE 200 PSI W.P. UHMW TUBE

3

4

Hose ID	Blue Cover	Green Cover	Hose OD	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
1"	GUH20C1-1.0-200	GUH20C1G-1.0-200	1-28/64"	200	29	2.5"	0.57
1-1/4"	GUH20C1-1.25-200	—	1-45/64"	200	29	2.75"	0.62
1-1/2"	GUH20C1-1.5-200	GUH20C1G-1.5-200	1-61/64"	200	29	3"	0.81
2"	GUH20C1-2.0-200	GUH20C1G-2.0-200	2-31/64"	200	29	4"	1.11
2-1/2"	GUH20C1-2.5-200	GUH20C1G-2.5-200	2-63/64"	200	29	5"	1.40
3"	GUH20C1-3.0-200	GUH20C1G-3.0-200	3-35/64"	200	29	6"	1.77
4"	GUH20C1-4.0-200	GUH20C1G-4.0-200	4-36/64"	200	29	8"	2.83
6"	GUH20C1-6.0-100	GUH20C1G-6.0-100	6-53/64"	200	29	20"	5.50

i

Temperature rating depends on specific chemical conveyed and concentration.
