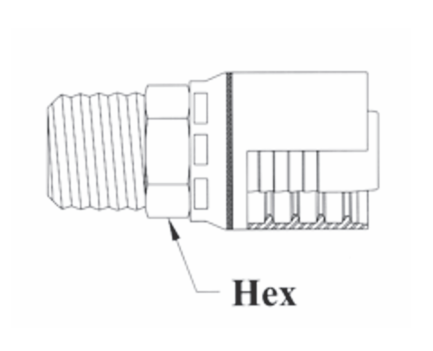

GW01-8x12 Couplamatic GW Series Coupling - NPTF - Male Solid - 1/2" Hose ID - 3/4-14 Thread

GW01-8x12 by Couplamatic | GW Series Coupling | 1/2" Hose ID x 3/4-14 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $1.34 Save $1.34
$12.03
$12.03 - $12.03
$12.03
$10.69
$10.69 - $10.69
$10.69

Couplamatic Systems Inc.
GW Series - NPTF - Male Solid
Specifications for Variant SKU: GW01-8x12 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW01-8x8 1/2" 1/2" 1/2-14 7/8" 43008U-108
GW01-8x12 1/2" 3/4" 3/4-14 1-1/8" 43008U-112
GW01-12x12 3/4" 3/4" 3/4-14 1-1/8" 43012U-112
GW01-12x16 3/4 1" 1-11-1/2 1-3/8" 43012U-116
GW01-16x12 1" 3/4" 3/4-14 1-3/8" 43016U-112
GW01-16x16 1" 1" 1-11-1/2 1-3/8" 43016U-116
GW01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 43020U-120
GW01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" 43024U-124
GW01-32x32 2" 2" 2-11-1/2 2-1/2" 43032U-132

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
