GW27-16x16 Couplamatic GW Series Coupling - JIC 37° - 90° Long Drop Female Swivel - 1" Hose ID - 1-5/16x12 Thread

GW27-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1-5/16x12 Thread JIC 37° Long Drop Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $31.45 Save $31.45
$78.62
$78.62 - $78.62
$78.62
$47.17
$47.17 - $47.17
$47.17

Couplamatic Systems Inc.
GW Series - JIC 37° - 90° Long Drop Female Swivel
Specifications for Variant SKU: GW27-16x16 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

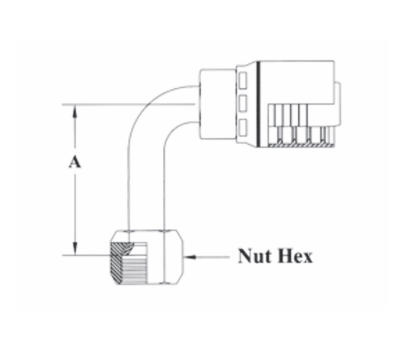

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex
GW27-12x12 3/4" 3/4" 1-1/16x12 3.73" 1-1/4"
GW27-16x16 1" 1" 1-5/16x12 4.50" 1-1/2"
