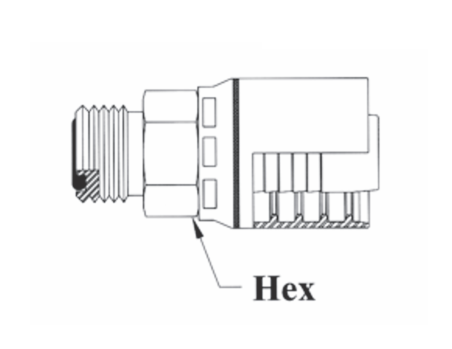

GW29-16x16 Couplamatic GW Series Coupling - O-Ring Face Seal (ORF) - Male Solid - 1" Hose ID - 1-7/16x12 Thread

GW29-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating

Save $21.49

$53.73

$53.73 - $53.73

$53.73

$32.24

$32.24 - $32.24

$32.24

Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - Male Solid

Specifications for Variant SKU: GW29-16x16 Couplamatic
Series:	GW Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating Couplings are capped with O-ring included.

Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Weatherhead 430U
GW29-8x8	1/2"	1/2"	13/16x16	7/8"	43008U-E68
GW29-12x12	3/4"	3/4"	1-3/16x12	1-1/4"	43012U-E72
GW29-16x16	1"	1"	1-7/16x12	1-1/2"	43016U-E76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
