GW37-12x22 Couplamatic GW Series Coupling - DIN Light Universal Seat - Female Swivel - 3/4" Hose ID - M30x2.0 Thread

GW37-12x22 by Couplamatic | GW Series Coupling | 3/4" Hose ID x M30x2.0 Thread DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $20.60 Save $20.60
$51.50
$51.50 - $51.50
$51.50
$30.90
$30.90 - $30.90
$30.90

Couplamatic Systems Inc.
GW Series - DIN Light Universal Seat - Female Swivel
Specifications for Variant SKU: GW37-12x22 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: L22 Female DIN, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

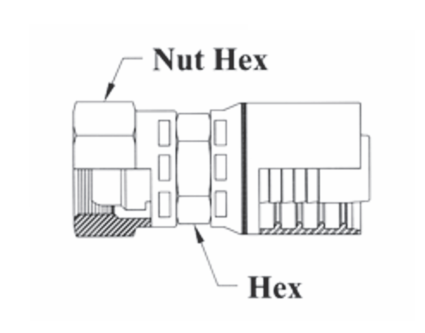

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW37-8x15 1/2" 15mm M22x1.5 7/8" 1-1/16" -
GW37-12x22 3/4" 22mm M30x2.0 1-1/8" 1-1/2" 43012U-22C
GW37-16x28 1" 28mm M36x2.0 1-3/8" 1-7/8" -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
