GW38-8x16 Couplamatic GW Series Coupling - DIN Heavy 24° Seat - Female Swivel - 1/2" Hose ID - M24x1.5 Thread

GW38-8x16 by Couplamatic | GW Series Coupling | 1/2" Hose ID x M24x1.5 Thread DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $13.59 Save $13.59
$33.97
$33.97 - $33.97
$33.97
$20.38
$20.38 - $20.38
$20.38

Couplamatic Systems Inc.
GW Series - DIN Heavy 24° Seat - Female Swivel
Specifications for Variant SKU: GW38-8x16 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: S16 Female DIN, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Includes O-Ring

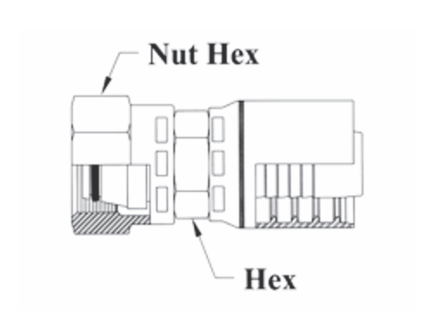

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW38-8x16 1/2" 16mm M24x1.5 7/8" 1-1/8" -
GW38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8" 43012U-75C
GW38-16x30 1" 30mm M42x2.0 1-11/16" 2" 43016U-80C

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
