H4012B ZSi-Foster | Beta Clamp Stacking Kit | Heavy Series | For 3/4" Tube | Polypropylene/Steel

H4012B by ZSi-Foster | Beta Clamp Stacking Kit | Heavy Series | For 3/4" Tube | Polypropylene/Steel

Save $7.47 Save $7.47
$20.76
$20.76 - $20.76
$20.76
$13.29
$13.29 - $13.29
$13.29

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Stacking Kit Assembly - Polypropylene (Green) Cushion
Specifications for Variant SKU: H4012B ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 0.75
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:

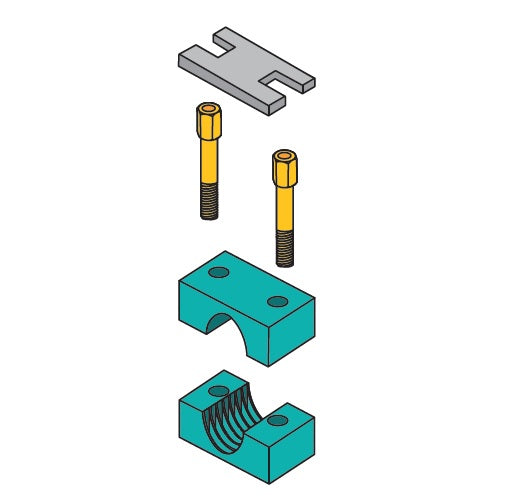

Assembly Includes:
Quantity Description
1 Each Safety Plate
2 Each Stacking Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H3007B 1/8" 3/8-16 x 1-3/4
H3004B H3009B 1/4" 3/8-16 x 1-3/4
H3006B H3011B 3/8" 3/8-16 x 1-3/4
H3008B H4014B 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010B - 5/8" 3/8-16 x 1-3/4
H4012B H4017B 3/4" 3/8-16 x 2-1/4
H4015B - 7/8" 3/8-16 x 2-1/4
H4016B H5021B 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020B H5027B 1-1/4" 3/8-16 x 2-3/4
H5024B H6030B 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028B - 1-3/4" 1/2-13 x 4
H6032B H6038B 2" 1/2-13 x 4
H6034B - 2-1/4" 1/2-13 x 4
H6040B H7046B 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044B - 2-3/4" 5/8-11 x 5-1/4
H7050B H7056B 3" 5/8-11 x 5-1/4
H7057B - 3-1/2" 5/8-11 x 5-1/4

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
