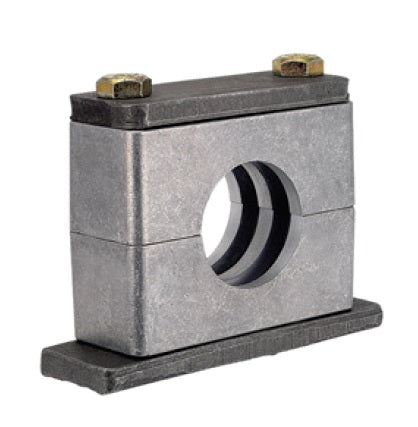

H5021S-AL ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1" Pipe | Aluminum

H5021S-AL by ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1" Pipe | Aluminum

$23.94 - $23.94
$23.94
$28.01
$28.01 - $28.01
$28.01

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Weld Mount - Aluminum Cushion

Recommended systems with greater than 1,500 psi (103 bar) operating pressure, operations with pressure surges, and applications with wide temperature fluctuations.

Aluminum cushions are used in higher heat applications up to 500°F (260°C).
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: H5021S-AL ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 1
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Aluminum
Installation:
Assembly Includes:
Quantity Description
1 Each Weld Plate
1 Each Cover Plate
2 Each Hex Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H3007S-AL 1/8" 3/8-16 x 1-3/4
H3004S-AL H3009S-AL 1/4" 3/8-16 x 1-3/4
H3006S-AL H3011S-AL 3/8" 3/8-16 x 1-3/4
H3008S-AL H4014S-AL 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010S-AL - 5/8" 3/8-16 x 1-3/4
H4012S-AL H4017S-AL 3/4" 3/8-16 x 2-1/4
H4015S-AL - 7/8" 3/8-16 x 2-1/4
H4016S-AL H5021S-AL 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020S-AL H5027S-AL 1-1/4" 3/8-16 x 2-3/4
H5024S-AL H6030S-AL 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028S-AL - 1-3/4" 1/2-13 x 4
H6032S-AL H6038S-AL 2" 1/2-13 x 4
H6034S-AL - 2-1/4" 1/2-13 x 4
H6040S-AL H7046S-AL 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044S-AL - 2-3/4" 5/8-11 x 5-1/4
H7050S-AL H7056S-AL 3" 5/8-11x5-1/4
H7057S-AL - 3-1/2" 5/8-11 x 5-1/4
- H8072S-AL 4" M20 x 190mm
- H9089S-AL 5" M24 x 220mm
- H9106S-AL 6" M24 x 220mm
