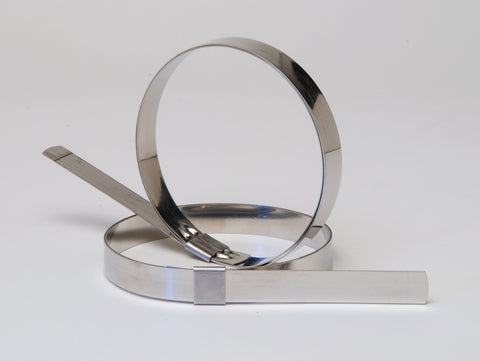

HBCP5S by Strapbinder | Center Punch Clamp | 1-1/4" ID | 5/8" Width | .025" Thickness | 201 Stainless Steel | Box of 100

HBCP5S by Strapbinder | Center Punch Clamp | 1-1/4" ID | 5/8" Width | .025" Thickness | 201 Stainless Steel | Box of 100

Save $4.37 Save $4.37
$120.12
$120.12 - $120.12
$120.12
$115.75
$115.75 - $115.75
$115.75

by Strapbinder
Preformed Hose Clamps:Galvanized Carbon Steel Center Punch Clamp

Under conditions of high corrosion, we recommend the stainless steel clamp.

Double wrapped and locked with the conical punch of the HBC300 Tensioning Tool.

Measure the outside diameter of the hose with the fitting inserted to figure out what size clamp you would need.

Package Quantity: 100 EA

Specifications for Variant SKU: HBCP5S Strapbinder | 100 |
Material(s): 201 Stainless Steel
Clamp Thickness: .025
Clamp Width: 5/8
Minimum Clamp I.D.: 1-1/4
Features:
  • Under conditions of high corrosion, we recommend the stainless steel clamp.
  • To order the proper size clamp, measure the outside diameter of the hose with the fitting inserted.
  • Select the next larger inside diameter clamp by Item #.5/8" Wide Clamp - .027" Thick.
Part Number Clamp ID Band Width Band Thickness Material Weight
HBCP3S 13/16" 3/8" .025" 201 Stainless Steel 3.60 lbs
HBCP311S 1-3/16" 3/8" .025" 201 Stainless Steel 4.60 lbs
HBCP4S 1" 5/8" .025" 201 Stainless Steel 8.30 lbs
HBCP5S 1-1/4" 5/8" .025" 201 Stainless Steel 8.70 lbs
HBCP6S 1-1/2" 5/8" .025" 201 Stainless Steel 9.70 lbs
HBCP7S 1-3/4" 5/8" .025" 201 Stainless Steel 10.60 lbs
HBCP8S 2" 5/8" .025" 201 Stainless Steel 11..5 lbs
HBCP9S 2-1/4" 5/8" .025" 201 Stainless Steel 12.60 lbs
HBCP10S 2-1/2" 5/8" .025" 201 Stainless Steel 6.80 lbs
HBCP11S 2-3/4" 5/8" .025" 201 Stainless Steel 7.30 lbs
HBCP12S 3" 5/8" .025" 201 Stainless Steel 7.70 lbs
HBCP14S 3-1/2" 5/8" .025" 201 Stainless Steel 8.70 lbs
HBCP16S 4" 5/8" .025" 201 Stainless Steel 4.90 lbs
HBCP18S 4-1/2" 5/8" .025" 201 Stainless Steel 5.50 lbs
HBCP20S 5" 5/8" .025" 201 Stainless Steel 5.90 lbs
HBCP24S 6" 5/8" .025" 201 Stainless Steel 6.80 lbs
HBCP28S 7" 5/8" .025" 201 Stainless Steel 7.40 lbs
HBCP32S 8" 5/8" .025" 201 Stainless Steel 8.20 lbs
HBCP3 13/16" 3/8" .025" Galvanized Carbon Steel 3.60 lbs
HBCP311 1-3/16" 3/8" .025" Galvanized Carbon Steel 4.60 lbs
HBCP4 1" 5/8" .025" Galvanized Carbon Steel 8.30 lbs
HBCP5 1-1/4" 5/8" .025" Galvanized Carbon Steel 8.70 lbs
HBCP6 1-1/2" 5/8" .025" Galvanized Carbon Steel 9.70 lbs
HBCP7 1-3/4" 5/8" .025" Galvanized Carbon Steel 10.60 lbs
HBCP8 2" 5/8" .025" Galvanized Carbon Steel 11..5 lbs
HBCP9 2-1/4" 5/8" .025" Galvanized Carbon Steel 12.60 lbs
HBCP10 2-1/2" 5/8" .025" Galvanized Carbon Steel 6.80 lbs
HBCP11 2-3/4" 5/8" .025" Galvanized Carbon Steel 7.30 lbs
HBCP12 3" 5/8" .025" Galvanized Carbon Steel 7.70 lbs
HBCP14 3-1/2" 5/8" .025" Galvanized Carbon Steel 8.70 lbs
HBCP16 4" 5/8" .025" Galvanized Carbon Steel 4.90 lbs
HBCP18 4-1/2" 5/8" .025" Galvanized Carbon Steel 5.50 lbs
HBCP20 5" 5/8" .025" Galvanized Carbon Steel 5.90 lbs
HBCP24 6" 5/8" .025" Galvanized Carbon Steel 6.80 lbs
HBCP28 7" 5/8" .025" Galvanized Carbon Steel 7.40 lbs
HBCP32 8" 5/8" .025" Galvanized Carbon Steel 8.20 lbs
Strapbinder

Strapbinder

Strapbinder is a leading global producer and manufacturer of stainless steel banding, preformed clamps, buckles, tools, and securement hardware. As a part of the Ideal Tridon Group, Strapbinder brings you over 100 years of quality engineered solutions.
