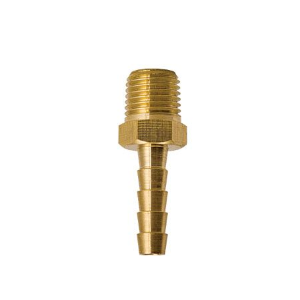

HBM-5-2 Breco by Foster | Hose Barb Fitting | 5/16" Hose Barb x 1/4" Male NPT Thread | Straight | Brass

HBM-5-2 Breco by Foster | Hose Barb Fitting | 5/16" Hose Barb x 1/4" Male NPT Thread | Straight | Brass

Save $4.71 Save $4.71
$7.98
$7.98 - $7.98
$7.98
$3.27
$3.27 - $3.27
$3.27

Foster Hose Barb Fittings - Male Pipe Thread Hose Barb - Breco
Specifications for Variant SKU: HBM-5-2 ZSi-Foster
Brand: Breco
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • For shop air, pneumatic tools, petroleum base hydraulic oils, anti-freeze compounds, gasoline, water, lubricating oils and diesel fuels.
Features:
  • "Push-On" hose used with standard barbed fittings requires hose clamp.
  • Temperature range: -40 deg. F to +212 deg. F.
Part Number Brand Male NPT x I.D.
M1 Foster 1/8" x 1/8"
HBM-1-1 Breco 1/8" x 1/8"
M2 Foster 1/8" x 3/16"
HBM-25-1 Breco 1/8" x 3/16"
M3 Foster 1/8" x 1/4"
HBM-2-1 Breco 1/8" x 1/3"
M4 Foster 1/8" x 5/16"
M5 Foster 1/8" x 3/8"
HBM-3-1 Breco 1/8" x 3/8"
M6 Foster 1/4" x 3/16"
M7 Foster 1/4" x 1/4"
HBM-2-2 Breco 1/4" x 1/4"
M8 Foster 1/4" x 5/16"
HBM-5-3 Breco 1/4" x 5/16"
M9 Foster 1/4" x 3/8"
HBM-3-2 Breco 1/4" x 3/8"
M11 Foster 1/4" x 1/2"
HBM-4-2 Breco 1/4" x 1/2"
M12 Foster 3/8" x 1/4"
HBM-2-3 Breco 3/8" x 1/4"
HBM-5-1 Breco 1/8" x 5/16"
M13 Foster 3/8" x 3/8"
HBM-3-3 Breco 3/8" x 3/8"
M14 Foster 3/8" x 1/2"
HBM-4-3 Breco 3/8" x 1/2"
M16 Foster 1/2" x 3/8"
HBM-3-4 Breco 1/2" x 3/8"
M17 Foster 1/2" x 1/2"
HBM-4-4 Breco 1/2" x 1/2"
HBM-4-6 Breco 3/4" x 1/2"
HBM-7-4 Breco 1/2" x 5/8"
M19 Foster 1/2" x 3/4"
HBM-6-4 Breco 1/4" x 3/4"
M22 Foster 3/4" x 3/4"
HBM-6-6 Breco 3/8" x 3/4"
HBM-8-6 Breco 3/4" x 1"
HBM-8-8 Breco 1" x 1"

Requires Hose Clamp

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
