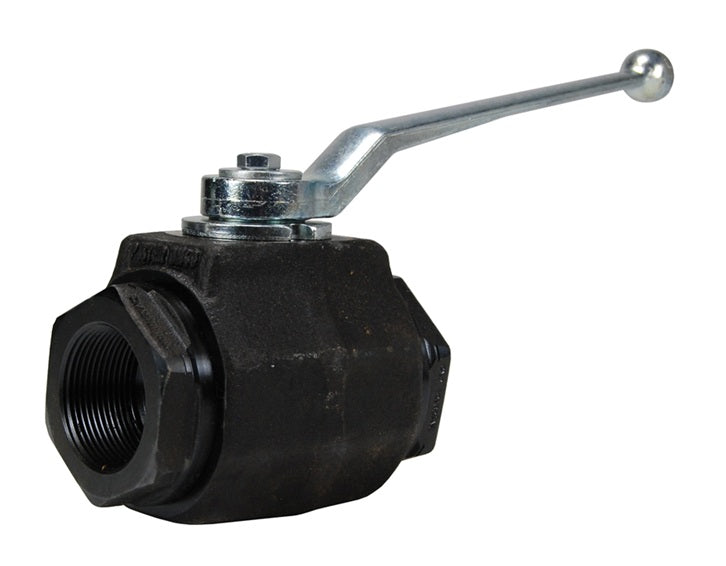

HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel
HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel
HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel
HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel
HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel
HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel
HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel

HPBV34 by Dixon Valve | High Pressure Ball Valve | Full-Bore | 3/4" Female NPT x 3/4" Female NPT | Carbon Steel

Save $50.83 Save $50.83
$127.07
$127.07 - $127.07
$127.07
$76.24
$76.24 - $76.24
$76.24

Dixon Valve & Coupling
High Pressure Ball Valve | Full-Bore
Specifications for Variant SKU: HPBV34 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF, 3/4in Female NPTF, Some Ends Match
Material(s): Carbon Steel
Seal Material(s): Viton/FKM
Features:
  • Blow-out proof stem.
  • Rugged construction.
Materials:
  • FKM/FPM seals.
  • POM (Polyacetal) ball seats.
Part Number Material Thread Type Size PSI
HPBV25 Carbon Steel Female NPT x Female NPT 1/4" 7350 PSI
HPBV38 Carbon Steel Female NPT x Female NPT 3/8" 7350 PSI
HPBV12 Carbon Steel Female NPT x Female NPT 1/2" 7350 PSI
HPBV34 Carbon Steel Female NPT x Female NPT 3/4" 6000 PSI
HPBV10 Carbon Steel Female NPT x Female NPT 1" 6000 PSI
HPBV125 Carbon Steel Female NPT x Female NPT 1-1/4" 6000 PSI
HPBV150 Carbon Steel Female NPT x Female NPT 1-1/2" 6000 PSI
HPBV200 Carbon Steel Female NPT x Female NPT 2" 6000 PSI

HPBV25SAE Carbon Steel Female SAE ORB x Female SAE ORB 1/4" 7350 PSI
HPBV38SAE Carbon Steel Female SAE ORB x Female SAE ORB 3/8" 7350 PSI
HPBV12SAE Carbon Steel Female SAE ORB x Female SAE ORB 1/2" 7350 PSI
HPBV34SAE Carbon Steel Female SAE ORB x Female SAE ORB 3/4" 6000 PSI
HPBV10SAE Carbon Steel Female SAE ORB x Female SAE ORB 1" 6000 PSI
HPBV125SAE Carbon Steel Female SAE ORB x Female SAE ORB 1-1/4" 6000 PSI
HPBV150SAE Carbon Steel Female SAE ORB x Female SAE ORB 1-1/2" 6000 PSI
HPBV200SAE Carbon Steel Female SAE ORB x Female SAE ORB 2" 6000 PSI

HPBV25SS 316 Stainless Steel Female NPT x Female NPT 1/4" 5880 PSI
HPBV38SS 316 Stainless Steel Female NPT x Female NPT 3/8" 5880 PSI
HPBV12SS 316 Stainless Steel Female NPT x Female NPT 1/2" 5880 PSI
HPBV34SS 316 Stainless Steel Female NPT x Female NPT 3/4" 5145 PSI
HPBV10SS 316 Stainless Steel Female NPT x Female NPT 1" 5145 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
