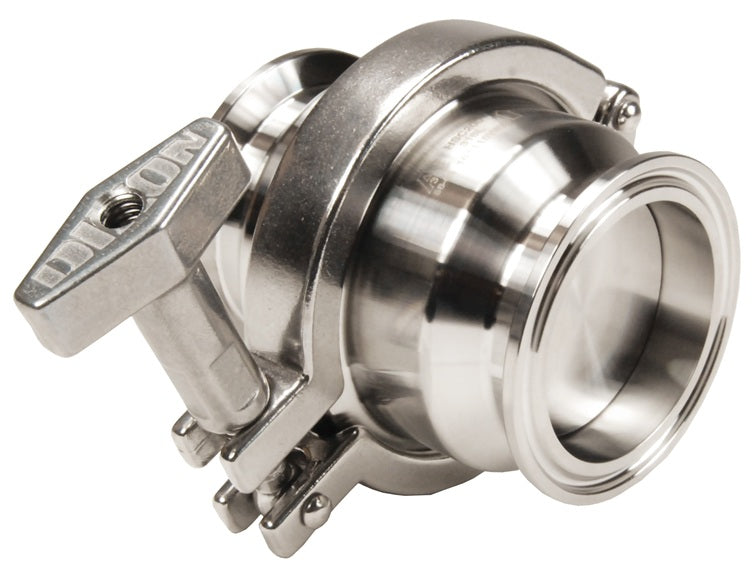

HSCE100 Dixon Valve HSC Spring Check Valve - 1" Clamp Connection - EPDM Gasket - 316L Stainless Steel

Name: HSCE100 Dixon Valve HSC Spring Check Valve - 1" Clamp Connection - EPDM Gasket - 316L Stainless Steel
Brand: Dixon
SKU: HSCE100 Dixon
Price: 185.84 USD
Availability: InStock

$0.00 - $0.00

$0.00

$185.84

$185.84 - $185.84

$185.84

Dixon Sanitary Fittings HSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.

Quantity

Specifications for Variant SKU: HSCE100 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	EPDM

Features:
Machined from solid bar Standard O-ring (EPDM) and gasket seal design Can be serviced in field (no special tools required) Finish: sanitary polish 32 Ra Temperature Range: 15° F to 200° F

Part Number	Size	Cracking Pressure	Max. Operating Pressure
HSCE050	1/2"	10.0 PSI	145 PSI
HSCE075	3/4"	4.0 PSI	145 PSI
HSCE100	1"	2.5 PSI	145 PSI
HSCE100500 (5" Overall Length)	1"	2.5 PSI	145 PSI
HSCE150	1-1/2"	1.0 PSI	145 PSI
HSCE150500 (5" Overall Length)	1-1/2"	1.0 PSI	145 PSI
HSCE200	2"	1.5 PSI	145 PSI
HSCE200500 (5" Overall Length)	2"	1.5 PSI	145 PSI
HSCE250*	2-1/2"	0.8 PSI	145 PSI
HSCE300*	3"	0.5 PSI	145 PSI
HSCE400*	4"	0.4 PSI	145 PSI

* CF8M (plunger)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
