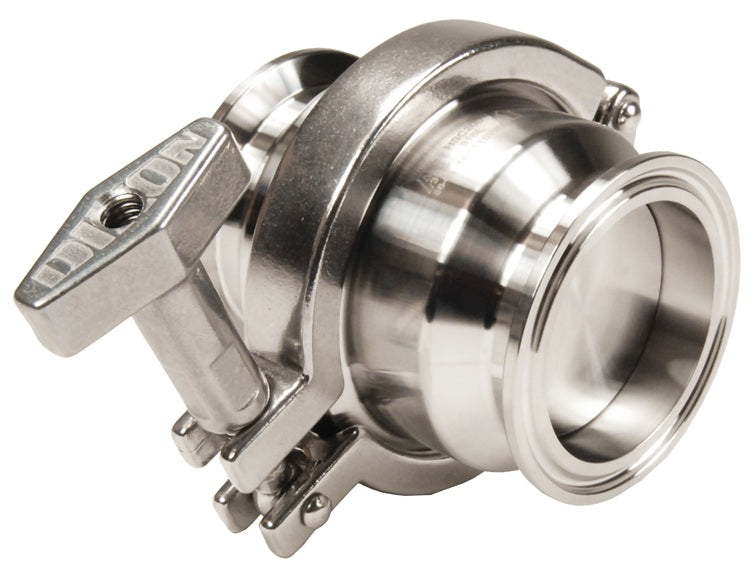

HSCE200BB Dixon Valve HSC Spring Check Valve - 2" Weld Connection - EPDM Gasket - 316L Stainless Steel

HSCE200BB Dixon Valve HSC Spring Check Valve - 2" Weld Connection - EPDM Gasket - 316L Stainless Steel

Save $21.34 Save $21.34
$213.41
$213.41 - $213.41
$213.41
$192.07
$192.07 - $192.07
$192.07

Dixon Sanitary Fittings HSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HSCE200BB Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Weld End, 2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCE050BB 1/2" 10.0 PSI 145 PSI
HSCE075BB 3/4" 4.0 PSI 145 PSI
HSCE100BB 1" 2.5 PSI 145 PSI
HSCE150BB 1-1/2" 1.0 PSI 145 PSI
HSCE200BB 2" 1.5 PSI 145 PSI
HSCE250BB 2-1/2" 0.8 PSI 145 PSI
HSCE300BB 3" 0.5 PSI 145 PSI
HSCE400BB 4" 0.4 PSI 145 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
