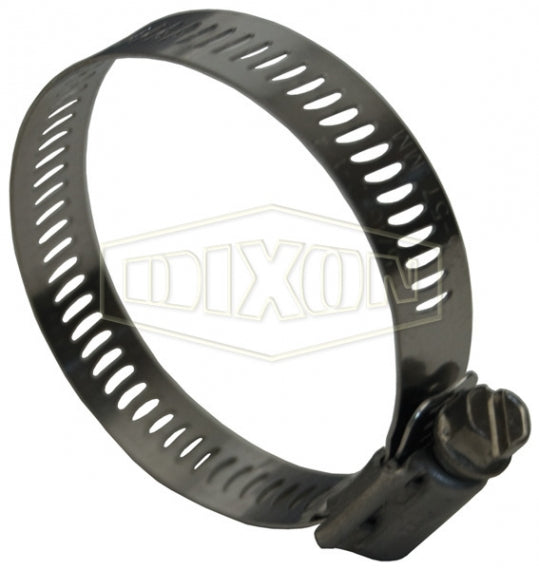

HSS128 by Dixon Valve | Style HSS | Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 5-5/8" to 8-1/2" | SAE 300 Stainless Steel Band & Screw

HSS128 by Dixon Valve | Style HSS | Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 5-5/8" to 8-1/2" | SAE 300 Stainless Steel Band & Screw | Box of 10

Save $25.51 Save $25.51
$63.78
$63.78 - $63.78
$63.78
$38.27
$38.27 - $38.27
$38.27

Dixon Valve
Worm Gear Clamps | Style HSS


Package Quantity: 10 EA

Specifications for Variant SKU: HSS128 Dixon | 10 |
Series: Style HSS
Material(s): 300 Stainless Steel
Clamp Width: 0.5625
Minimum Clamp I.D.: 5.625
Maximum Clamp I.D.: 8.5
Features:
  • Four-piece construction
  • Maximum recommended torque 50 in. lbs
  • Screw design: 5/16" slotted hex head
Materials:
  • Style HS
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 1018 case-hardened, hex-free chrome zinc-plated steel.
  • Style HSS
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 300-series stainless.
Approval:
  • Clamp meets SAEJ1508 which supercedes Mil Spec WW-C-440B.
Style HS
Part Number		 Style HSS
Part Number		 Band Width Hose OD
From To
HS6 HSS6 1/2" 7/16" 25/32"
HS8 HSS8 1/2" 1/2" 29/32"
HS10 HSS10 1/2" 9/16" 1-1/16"
HS12 HSS12 1/2" 11/16" 1-1/14"
HS16 HSS16 1/2" 13/16" 1-1/2"
HS20 HSS20 1/2" 13/16" 1-3/4"
HS24 HSS24 1/2" 1-1/16" 2"
HS28 HSS28 1/2" 1-5/16" 2-1/4"
HS32 HSS32 1/2" 1-9/16" 2-1/2"
HS36 HSS36 1/2" 1-13/16" 2-3/4"
HS40 HSS40 1/2" 2-1/16" 3"
HS44 HSS44 1/2" 2-5/16" 3-1/4"
HS48 HSS48 1/2" 2-9/16" 3-1/2"
HS52 HSS52 1/2" 2-13/16" 3-3/4"
HS56 HSS56 1/2" 3-1/16" 4"
HS60 HSS60 1/2" 3-5/16" 4-1/4"

HS64 HSS64 9/16" 3-9/16" 4-1/2"
HS72 HSS72 9/16" 1-7/8" 5"
HS80 HSS80 9/16" 2-1/2" 5-1/2"
HS88 HSS88 9/16" 3-1/8" 6"
HS96 HSS96 9/16" 3-5/8" 6-1/2"
HS104 HSS104 9/16" 4-1/8" 7"
HS128 HSS128 9/16" 5-5/8" 8-1/2"
HS152 HSS152 9/16" 7-1/8" 10"
HS188 HSS188 9/16" 9-3/8" 12-1/4"
HS200 HSS200 9/16" 10-1/8" 13"
HS212 HSS212 9/16" 10-7/8" 13-3/4"
HS224 HSS224 9/16" 11-5/8" 14-1/2"
HS236 HSS236 9/16" 12-3/8" 15-1/4"
HS248 HSS248 9/16" 13-1/8" 16"
HS312 HSS312 9/16" 17-1/8" 20"
