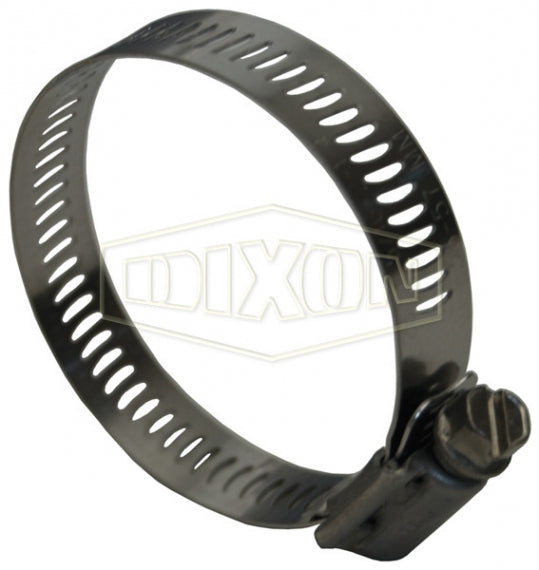

HSS40 by Dixon Valve | Style HSS | Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 2-1/16" to 3" | SAE 300 Stainless Steel Band & Screw

HSS40 by Dixon Valve | Style HSS | Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 2-1/16" to 3" | SAE 300 Stainless Steel Band & Screw | Box of 10

$1.46 - $1.46
$1.46
$13.05
$13.05 - $13.05
$13.05

Dixon Valve
Worm Gear Clamps | Style HSS


Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HSS40 Dixon | 10 |
Series: Style HSS
Material(s): 300 Stainless Steel
Clamp Width: 0.5
Minimum Clamp I.D.: 2.0625
Maximum Clamp I.D.: 3
Features:
  • Four-piece construction
  • Maximum recommended torque 50 in. lbs
  • Screw design: 5/16" slotted hex head
Materials:
  • Style HS
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 1018 case-hardened, hex-free chrome zinc-plated steel.
  • Style HSS
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 300-series stainless.
Approval:
  • Clamp meets SAEJ1508 which supercedes Mil Spec WW-C-440B.
Style HS
Part Number		 Style HSS
Part Number		 Band Width Hose OD
From To
HS6 HSS6 1/2" 7/16" 25/32"
HS8 HSS8 1/2" 1/2" 29/32"
HS10 HSS10 1/2" 9/16" 1-1/16"
HS12 HSS12 1/2" 11/16" 1-1/14"
HS16 HSS16 1/2" 13/16" 1-1/2"
HS20 HSS20 1/2" 13/16" 1-3/4"
HS24 HSS24 1/2" 1-1/16" 2"
HS28 HSS28 1/2" 1-5/16" 2-1/4"
HS32 HSS32 1/2" 1-9/16" 2-1/2"
HS36 HSS36 1/2" 1-13/16" 2-3/4"
HS40 HSS40 1/2" 2-1/16" 3"
HS44 HSS44 1/2" 2-5/16" 3-1/4"
HS48 HSS48 1/2" 2-9/16" 3-1/2"
HS52 HSS52 1/2" 2-13/16" 3-3/4"
HS56 HSS56 1/2" 3-1/16" 4"
HS60 HSS60 1/2" 3-5/16" 4-1/4"

HS64 HSS64 9/16" 3-9/16" 4-1/2"
HS72 HSS72 9/16" 1-7/8" 5"
HS80 HSS80 9/16" 2-1/2" 5-1/2"
HS88 HSS88 9/16" 3-1/8" 6"
HS96 HSS96 9/16" 3-5/8" 6-1/2"
HS104 HSS104 9/16" 4-1/8" 7"
HS128 HSS128 9/16" 5-5/8" 8-1/2"
HS152 HSS152 9/16" 7-1/8" 10"
HS188 HSS188 9/16" 9-3/8" 12-1/4"
HS200 HSS200 9/16" 10-1/8" 13"
HS212 HSS212 9/16" 10-7/8" 13-3/4"
HS224 HSS224 9/16" 11-5/8" 14-1/2"
HS236 HSS236 9/16" 12-3/8" 15-1/4"
HS248 HSS248 9/16" 13-1/8" 16"
HS312 HSS312 9/16" 17-1/8" 20"
