HTSS5180-175X25 Hose-Tec by Kuriyama | HT5000 Series | Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose | SS Armor/SS Liner | Medium Weight | ID: 1-3/4" | 304 Stainless Steel | 25ft Length

Save $100.61

$1,004.81

$1,004.81 - $1,004.81

$1,004.81

$904.20

$904.20 - $904.20

$904.20

Kuriyama Hose Tec® HT5000 Series Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose - Medium Weight - 300 Stainless Steel

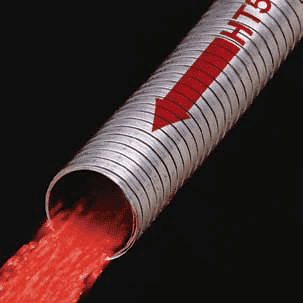

HT5000's Smooth Bore Interlocked Metal Hose combines the Hose Tec® single-strip interlocking armor construction with a second strip liner, providing a smooth interior flexible metal hose that resists material build-up; reduces internal abrasion and material degradation. Materials flow smoothly in one direction shown by arrows.

Package Quantity: 25 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HTSS5180-175X25 Kuriyama \| 25 \|
Brand:	Hose Tec
Series:	HTSS5180 Series
Hose Color(s):	Metallic
Internal Diameter:	1.75in
Tubing Construction:	304 Stainless Steel

SPECIFICATIONS

Other Features:
Application:	Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	300 Stainless Steel
Reinforcement:	N/A	Cover:	300 Stainless Steel
Temperature Range:	Max. Service Temp: Up to 1500 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Construction: An armor strip is combined with a strip of liner material and formed to create a lined flexible interlocked metal hose that offers superior strength and abrasion-resistance for longer hose life. Thickness: .018" Armor / .015" Liner Directional flow arrows are provided on each length. Galvanized or Stainless steel liner provides additional strength and greater resistance to abrasion; extends hose life. Smooth liner reduces material degradation and improves loading/unloading time.

Part Number	Hose Size ID (in.)	Min Inside Bend Radius (in.)	Length (ft.)	Weight (per foot)
HTSS5180-150X25	1-1/2"	6.00"	25ft	1.50 lbs
HTSS5180-175X25	1-3/4"	7.00"	25ft	1.70lbs
HTSS5180-200X25	2"	7.50"	25ft	1.60 lbs
HTSS5180-225X25	2-1/4"	9.50"	25ft	2.10 lbs
HTSS5180-250X25	2-1/2"	10.50"	25ft	2.30 lbs
HTSS5180-275X25	2-3/4"	12.50"	25ft	2.50 lbs
HTSS5180-300X25	3"	14.00"	25ft	2.80lbs
HTSS5180-350X25	3-1/2"	15.00"	25ft	3.20lbs
HTSS5180-400X25	4"	16.00"	25ft	3.60lbs
HTSS5180-450X25	4-1/2"	18.50"	25ft	4.00lbs
HTSS5180-500X25	5"	20.50"	25ft	4.70lbs
HTSS5180-600X25	6"	24.50"	25ft	5.60lbs
HTSS5180-700X25	7"	29.00"	25ft	6.60lbs
HTSS5180-800X25	8"	31.50"	25ft	7.70lbs
HTSS5180-1000X25	10"	39.50"	25ft	9.70lbs
HTSS5180-1200X25	12"	47.00"	25ft	11.70lbs
HTSS5180-1400X25	14"	55.00"	25ft	13.50lbs
HTSS5180-1600X25	16"	63.00"	25ft	15.00lbs

Note: If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
