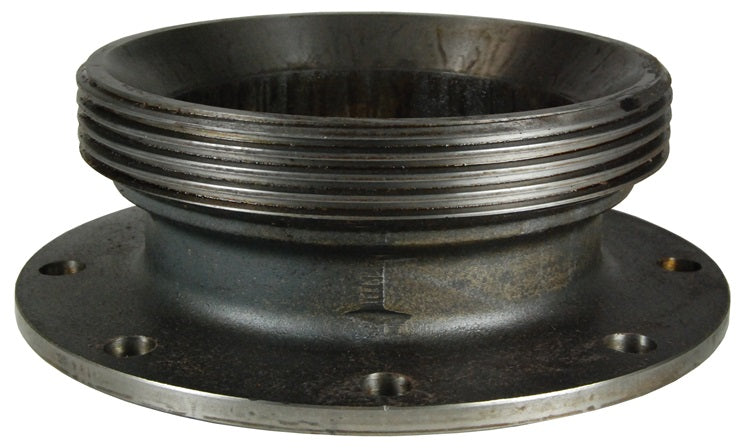

HUFALL600FLG by Dixon Valve | Boss® One-Piece Flange Adapter | Figure 100/200/206 | 6" Size | 125# Flange x Female Hammer Union; Connects to Figures 100/200/206 | Iron

Name: HUFALL600FLG by Dixon Valve | Boss® One-Piece Flange Adapter | Figure 100/200/206 | 6" Size | 125# Flange x Female Hammer Union; Connects to Figures 100/200/206 | Iron
Brand: Dixon
SKU: HUFALL600FLG Dixon
Price: 299.81 USD
Availability: InStock

Save $37.48

$337.29

$337.29 - $337.29

$337.29

$299.81

$299.81 - $299.81

$299.81

Dixon Valve
Boss® | LPS One-Piece Flange Adapter

Used in the transfer of water, brine, water-based chemicals, water-based acids, and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.

Quantity

Specifications for Variant SKU: HUFALL600FLG Dixon
Brand:	Boss
Shape (Orientation):	Straight

Features:
Use with HU200400RN two-piece nut. Flange x female or male hammer union straights (standard or short length). No welds or pipe threads to deteriorate and cause premature leakage. Two-piece nut is pinned and bolted for perfect alignment. All 4" Figure 206 threads are interchangeable with other reliable brands. 125# flange match the bolt pattern of 150# flange. Replacement for welded multi-piece flange adapter.
Material:
Iron
Specifications:
Iron adapter meets ASTM standards.

Part Number	Size	Figure	Description	Overall Length
HUF206400FLG	4"	206	Female Hammer Union x 125# Flange	5-1/8"
HUM206400FLG	4"	206	Male Hammer Union x 125# Flange Includes Nut And Nitrile Rubber O-Ring	5-9/16" (with nut)
HUFALL600FLG	6"	100/200/206	125# Flange x Female Hammer Union; Connects to Figures 100/200/206	4-1/2"
HUM206600FLG	6"	206	125# Flange x Male (Includes Iron Nut and O-Ring)	4-15/16"
HUFALL800FLG	8"	100/200/206	125# Flange x Female Hammer Union; Connects to Figures 100/200/206	4-1/2"
HUM206800FLG	8"	206	125# Flange x Male (Includes Nut and O-Ring)	5-7/32"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
