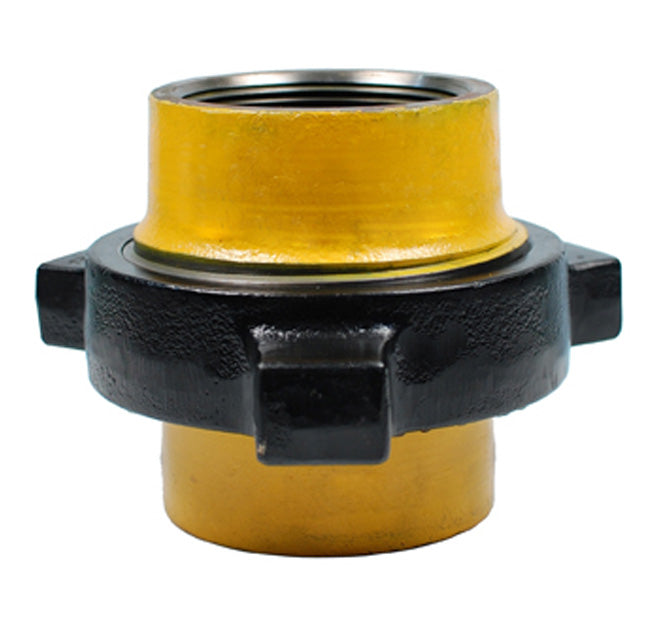

HUT100-6 by Kuriyama | HUT100 Series | Threaded Hammer Union | Figure 100 | 6" Size | 1000 PSI CWP | Carbon Steel

Save $81.22

$269.69

$269.69 - $269.69

$269.69

$188.47

$188.47 - $188.47

$188.47

Kuriyama of America Inc.
HUT100 Series | Threaded Hammer Union | Figure 100

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT100-6 Kuriyama
Series:	HUT100 Series
Shape (Orientation):	Straight
Ends Configuration:	6in Female NPT, 6in Female NPT, Some Ends Match
Material(s):	Carbon Steel

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

Body: A-105/AISI 1020 Carbon Steel.
Nut: A-105/AISI 1020 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT100-2	2"	1000 PSI	5.29 lbs
HUT100-3	3"	1000 PSI	11.60 lbs
HUT100-4	4"	1000 PSI	17.75 lbs
HUT100-6	6"	1000 PSI	44.40 lbs
HUT100-8	8"	1000 PSI	69.90 lbs
