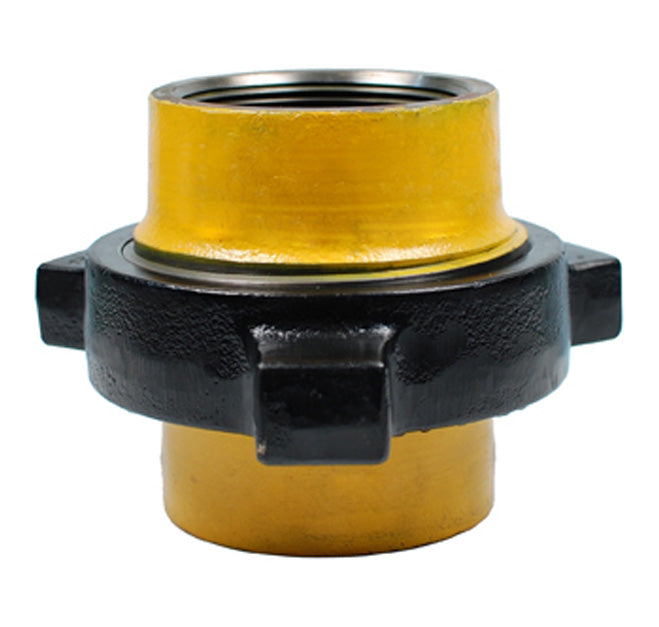

HUT100-8 by Kuriyama | HUT100 Series | Threaded Hammer Union | Figure 100 | 8" Size | 1000 PSI CWP | Carbon Steel

Save $135.26

$538.91

$538.91 - $538.91

$538.91

$403.65

$403.65 - $403.65

$403.65

Kuriyama of America Inc.
HUT100 Series | Threaded Hammer Union | Figure 100

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.

Specifications for Variant SKU: HUT100-8 Kuriyama
Series:	HUT100 Series
Shape (Orientation):	Straight
Ends Configuration:	8in Female NPT, 8in Female NPT, Some Ends Match
Material(s):	Carbon Steel

What are the Features?

Applications include oil, gas, air, and water.
Color-coded for easy identification.
Unions are interchangeable with like products.
CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

Body: A-105/AISI 1020 Carbon Steel.
Nut: A-105/AISI 1020 Carbon Steel.

Part Number	Size (in)	CWP Rating at 70°F	Weight Each (lbs)
HUT100-2	2"	1000 PSI	5.29 lbs
HUT100-3	3"	1000 PSI	11.60 lbs
HUT100-4	4"	1000 PSI	17.75 lbs
HUT100-6	6"	1000 PSI	44.40 lbs
HUT100-8	8"	1000 PSI	69.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
