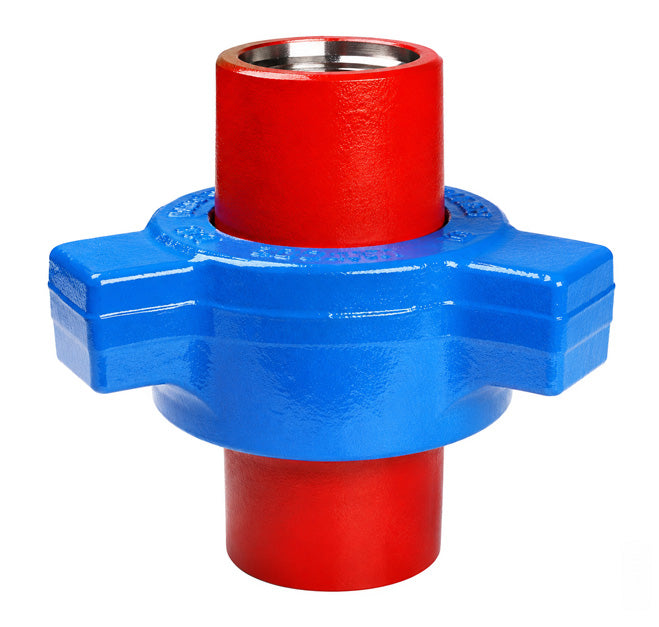

HUT1502-3 by Kuriyama | HUT1502 Series | Threaded Hammer Union | Figure 1502 | 3" Size | 15000 PSI CWP | Carbon Steel

HUT1502-3 by Kuriyama | HUT1502 Series | Threaded Hammer Union | Figure 1502 | 3" Size | 15000 PSI CWP | Carbon Steel

Save $77.68 Save $77.68
$411.27
$411.27 - $411.27
$411.27
$333.59
$333.59 - $333.59
$333.59

Kuriyama of America Inc.
HUT1502 Series | Threaded Hammer Union | Figure 1502

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.
Specifications for Variant SKU: HUT1502-3 Kuriyama
Series: HUT1502 Series
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT, Some Ends Match
Material(s): Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Features?

  • Applications include oil, gas, air, and water.
  • Color-coded for easy identification.
  • Unions are interchangeable with like products.
  • CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).
  • Supplied with specially designed Buna-N lip type elastomer seal, which protects metal-to-metal sealing surfaces and reduces line flow turbulence.

What are the Materials?

  • Body: AISI 4130 Carbon Steel.
  • Nut: AISI 4130 Carbon Steel.
Part Number Size
(in)		 CWP Rating
at 70°F 		Weight
Each
(lbs)
HUT1502-2 2" 15000 PSI 18.96 lbs
HUT1502-3 3" 15000 PSI 27.56 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
