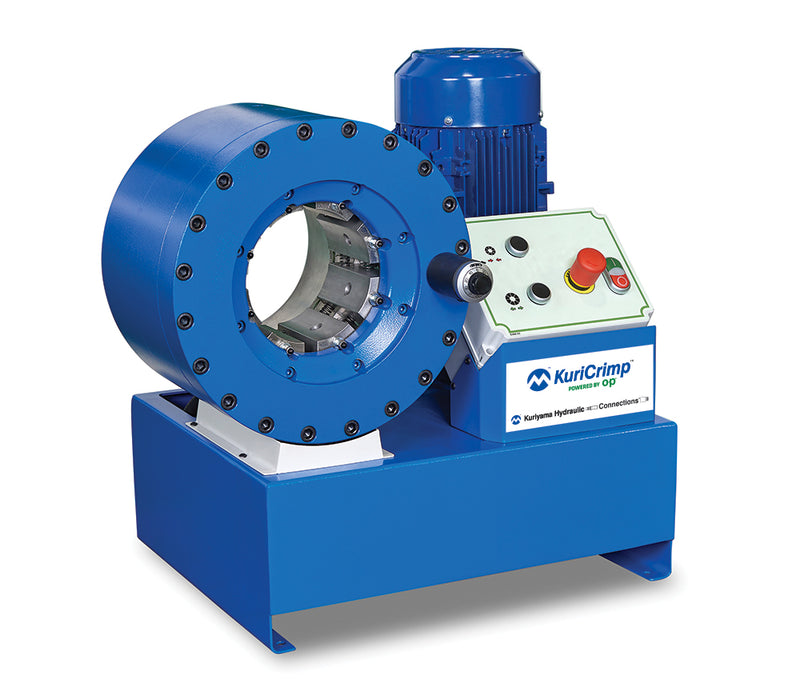

KC1-H130-230/3 KuriCrimp™ by Kuriyama | KC1-H130 Series | Standard Volume Crimper | 2.9 HP (230V) 3 PH Motor | 275 Ton Crimping Force | Includes: Die Segment Change Tool

KC1-H130-230/3 KuriCrimp™ by Kuriyama | KC1-H130 Series | Standard Volume Crimper | 2.9 HP (230V) 3 PH Motor | 275 Ton Crimping Force | Includes: Die Segment Change Tool

Save $5,261.33 Save $5,261.33
$18,414.65
$18,414.65 - $18,414.65
$18,414.65
$13,153.32
$13,153.32 - $13,153.32
$13,153.32

Kuriyama of America Inc.
KuriCrimp™ | KC1-H130 Series | Standard Volume Crimper

The KC1-H130 is a powerful yet economical shop crimper with the ability to crimp up to 2" 4 SP, 1-1/4" 6 SP hydraulic hose, as well as industrial hose up to 3".
Specifications for Variant SKU: KC1-H130-230/3 Kuriyama
Brand: KuriCrimp
Series: KC1-H130 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2
  • 4 SP / 6 SP: 2 / 1-1/4
  • 90° Fittings: 2
  • Industrial: 3
Crimping Force (ton):
  • 275
Opening Diameter:
  • Max. Without Dies (mm / in): 154 / 6.06
  • Max. With Dies (mm / in): 108 / 4.25
  • By Die Size (mm): Die Size + 35 / 1.38
Crimper Size:
  • L x W x H (in): 26.2 x 23.1 x 26.0
  • Weight (lbs): 454
Control Mechanism:
  • Dial micrometer with locking switch.
  • Electromechanical controls with power, open/close and emergency off buttons.
Hydraulic Fluid:
  • Type ISO 46
  • Amount 22L = 5.82 Gal.
  Part Number Description
KC1-H130-230/1 2.9 HP (230 V) 1 PH Motor
275 Ton Crimping Force
Includes: Die Segment Change Tool
KC1-H130-230/3 2.9 HP (230V) 3 PH Motor
275 Ton Crimping Force
Includes: Die Segment Change Tool
Included Accessories
Die Segment Change Tool
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 KCPQCT-H130
Patented Quick Change Die Tool		 DIEBASE-H130
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)		 PEDAL-KC1
Electric Double Foot Pedal

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
