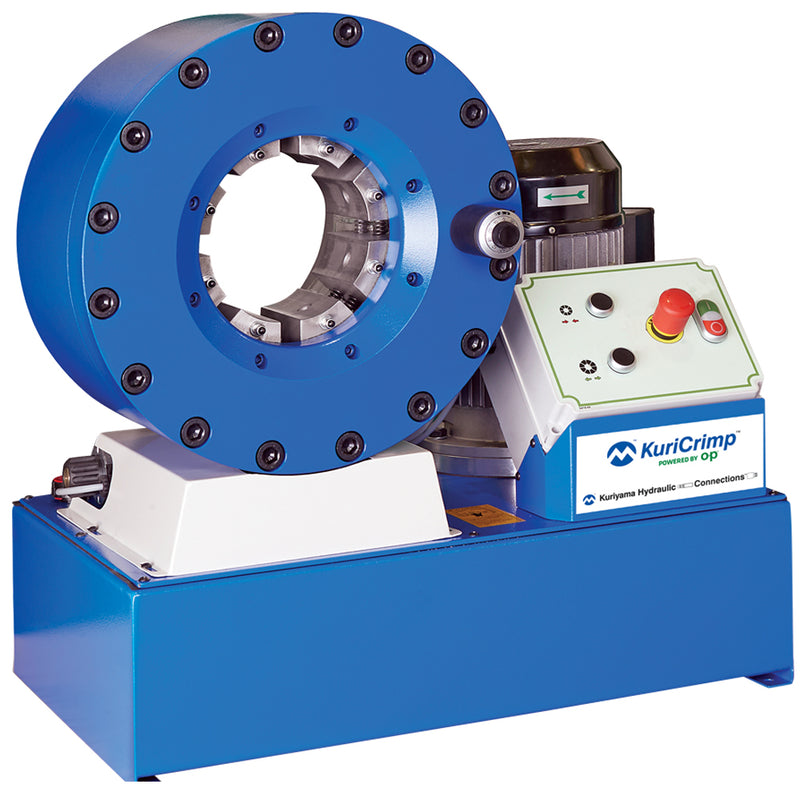

KC1-H135-230/3 KuriCrimp™ by Kuriyama | KC1-H135 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 330 Ton Crimping Force

KC1-H135-230/3 KuriCrimp™ by Kuriyama | KC1-H135 Series | Standard Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 330 Ton Crimping Force

Save $7,463.42 Save $7,463.42
$26,121.97
$26,121.97 - $26,121.97
$26,121.97
$18,658.55
$18,658.55 - $18,658.55
$18,658.55

Kuriyama of America Inc.
KuriCrimp™ | KC1-H135 Series | Standard Volume Crimper

A powerful, no frills crimper that gets the job done.

Handles all styles of hydraulic hose up to 2", as well as industrial hose up to 3".
Specifications for Variant SKU: KC1-H135-230/3 Kuriyama
Brand: KuriCrimp
Series: KC1-H135 Series
Hose Capacity (in):
  • 1 - 2 Wire: 2
  • 4 SP / 6 SP: 2
  • 90° Fittings: 2
  • Industrial: 3
Crimping Force (ton):
  • 330
Opening Diameter:
  • Max. Without Dies (mm / in): 162 / 6.38
  • Max. With Dies (mm / in): 139 / 5.47
  • By Die Size (mm): Die Size + 43
Crimper Size:
  • L x W x H (in): 30.7 x 24.8 x 28.1
  • Weight (lbs): 704
Control Mechanism:
  • Dial micrometer with locking switch.
  • Electromechanical controls with power, open/close and emergency off buttons.
  Part Number Description
KC1-H135-230/1 5.5 HP (230 V) 1 PH Motor
330 Ton Crimping Force
KC1-H135-230/3 7.5 HP (230 V) 3 PH Motor
330 Ton Crimping Force
Dies | H119 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDH119-6 6.0 - 8.0mm 6mm 60mm 11.7 lbs
KCDH119-8 8.0 - 10.0mm 8mm 60mm 11.7 lbs
KCDH119-10 10.0 - 12.0mm 10mm 60mm 11.7 lbs
KCDH119-12 12.0 - 14.0mm 12mm 60mm 11.7 lbs
KCDH119-14 14.0 - 16.0mm 14mm 60mm 11.7 lbs
KCDH119-16 16.0 - 19.0mm 16mm 60mm 11.7 lbs
KCDH119-19 19.0 - 22.0mm 19mm 60mm 11.7 lbs
KCDH119-22 22.0 - 25.0mm 22mm 60mm 12.2 lbs
KCDH119-25 25.0 - 29.0mm 25mm 60mm 12.0 lbs
KCDH119-29 29.0 - 34.0mm 29mm 70mm 12.0 lbs
KCDH119-34 34.0 - 38.0mm 34mm 70mm 12.0 lbs
KCDH119-38 38.0 - 42.0mm 38mm 85mm 12.0 lbs
KCDH119-42 42.0 - 46.0mm 42mm 85mm 15.5 lbs
KCDH119-46 46.0 - 50.0 46mm 95mm 16.5 lbs
KCDH119-50 50.0 - 54.0mm 50mm 95mm 15.5 lbs
KCDH119-54X110 54.0 - 58.0mm 54mm 110mm 15.5 lbs
KCDH119-58 58.0 - 63.0mm 58mm 95mm 14.5 lbs
KCDH119-60X110 60.0 - 63.0mm 58mm 110mm 14.5 lbs
KCDH119-63X120 63.0 - 69.0mm 63mm 120mm 14.5 lbs
KCDH119-69 69.0 - 73.0mm 69mm 100mm 13.5 lbs
KCDH119-73X120 73.0 - 77.0mm 73mm 120mm 12.5 lbs
KCDH119-77 77.0 - 86.0mm 77mm 120mm 12.5 lbs
KCDH119-86 86.0 - 90.0mm 86mm 120mm 12.5 lbs
KCDH119-90 90.0 - 96.0mm 90mm 150mm 12.5 lbs
KCDH119-96 96.0 - 103.0mm 96mm 120mm 12.5 lbs
Optional Accessories:
KCQCT-H119
Quick Change Die Tool		 DIEBASE-H119
Die Holder Base (18 pc.)		 DIERACK-H119
Die Rack (8 pc.)
PEDAL-KC1
Electric Double Foot Pedal		 KCPQCT-H135
Patented Quick Change Die Tool for H135 Standard Volume Crimpers		 MIRROR-H135/170
Back Mirror for H135 Standard Volume Crimpers
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
