KH-STOPFUVARIE Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Large Cutting Plate | M8 Size | 0.512" ID | 17.717" Length | Pack of 10

Save $102.64

$359.25

$359.25 - $359.25

$359.25

$256.61

$256.61 - $256.61

$256.61

Kuriyama of America Inc.

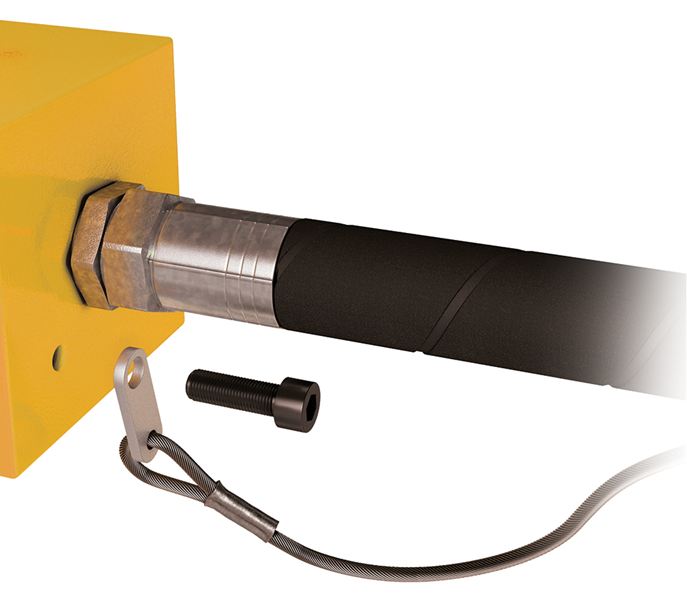

Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUVARIE | Nipple Retention System for Various Uses

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.

Package Quantity: 10 Units

Specifications for Variant SKU: KH-STOPFUVARIE Kuriyama
Brand:	Stopflex
Series:	KH-STOPFUVARIE Series
Applicable Specs & Approvals:	ISO 4413

About:

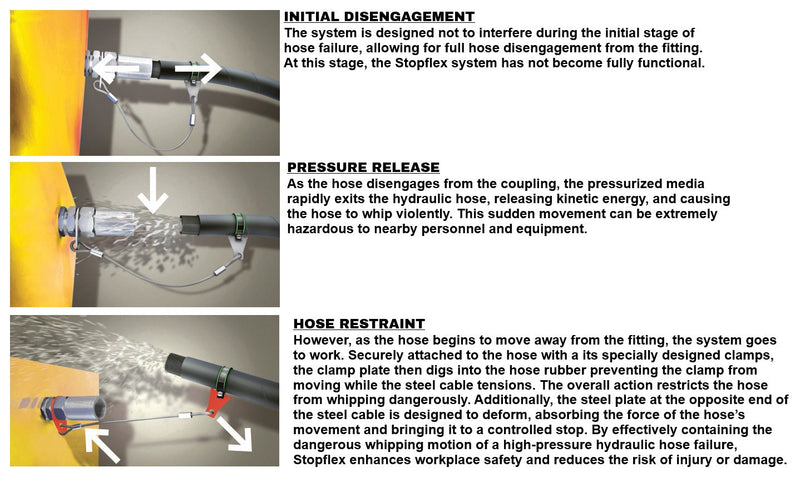

Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI. During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury. The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
Stopflex enhances workplace safety and reduces the risk of injury or damage. Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.


Part Number	Ø M	Ø (in)	SP./TH (in)	L (in)	Maximum Operating Pressure	Cutting Plate
KH-STOPFUVARIE	M8	0.512"	0.157"	17.717"	6090 PSI	LARGE
KH-STOPFUVARIES	M6	0.413"	0.157"	17.717"	6090 PSI	SMALL

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
