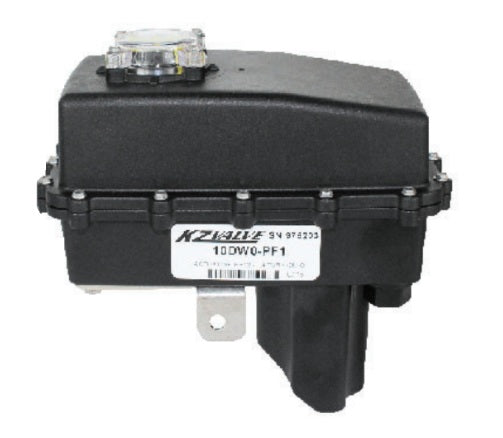

KZ-20E8S-D01 KZ Valve by Banjo | ACTUATOR ONLY for KZVALVE Anhydrous Ammonia (NH3) Actuated Valves | EH9 Actuator Series | For Valve Size: Up to 1" | Control Type: FAST RATE

KZ-20E8S-D01 KZ Valve by Banjo | ACTUATOR ONLY for KZVALVE Anhydrous Ammonia (NH3) Actuated Valves | EH9 Actuator Series | For Valve Size: Up to 1" | Control Type: FAST RATE

Minimum Order Quantity: 5 Units

Save $29.23 Save $29.23
$263.07
$263.07 - $263.07
$263.07
$233.84
$233.84 - $233.84
$233.84

Banjo® Liquid Handling Products
KZ Valve | ACTUATOR ONLY for KZVALVE Anhydrous Ammonia (NH3) Actuated Valves
Specifications for Variant SKU: KZ-20E8S-D01 Banjo
Brand: KZ Valve
Series: EH2 Actuator Series
Part Number Actuator Series Control Type For Valve Brand For Valve Sizes Cycle Time Retrofit Actuator
Mounting Kit
Required
KZ-20DY0-CF1* EH2 Fast Rate Raven 1 - 1 1/2" 1.5 SEC KZ-KRKIT For 1" & 1 1/4" Raven Valves
KZ-KR15KIT For 1-1/2" Raven Valves
KZ-10DY0-CF1* EH2 ON/OFF Raven 1 - 1 1/2" 1.5 SEC KZ-KRKIT For 1" & 1 1/4" Raven Valves
KZ-KR15KIT For 1-1/2" Raven Valves
KZ-K0HU0-CF1* EH2 Standard Rate Raven 1 - 1 1/2" 8.0 SEC KZ-KRKIT For 1" & 1 1/4" Raven Valves
KZ-KR15KIT For 1-1/2" Raven Valves
KZ-20E8S-C01 EH9 Fast Rate KZValve Up To 1" 1.5 SEC -
KZ-1CE9S-D01 EH9 ON/OFF KZValve Up To 1" 0.7 SEC -
KZ-20E7S-D01 EH9 Standard Rate KZValve Up To 1" 3 SEC -
KZ-20E8S-D01 EH9 Fast Rate KZValve Up To 1" 1.7 SEC -
KZ-1AE9S-C01 EH9 ON/OFF KZValve Up To 1" 0.7 SEC -

* These actuators are designed to replace Raven actuators on Raven valves. They require a retrofit actuator mounting kit.
