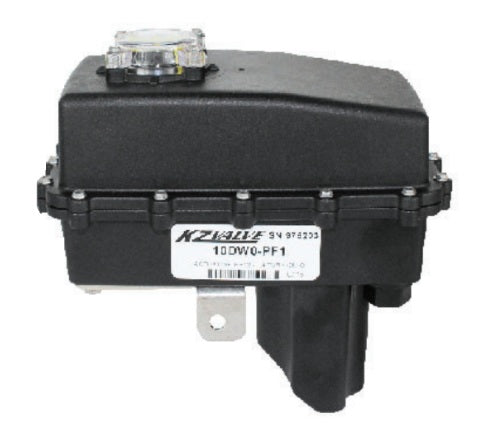

KZ-K0HU0-CF1 KZ Valve by Banjo | ACTUATOR ONLY for RAVEN Anhydrous Ammonia (NH3) Actuated Valves | EH2 Actuator Series | For Valve Size: 1" - 1-1/2" | Control Type: STANDARD RATE

Name: KZ-K0HU0-CF1 KZ Valve by Banjo | ACTUATOR ONLY for RAVEN Anhydrous Ammonia (NH3) Actuated Valves | EH2 Actuator Series | For Valve Size: 1" - 1-1/2" | Control Type: STANDARD RATE
Brand: Banjo
SKU: KZ-K0HU0-CF1 Banjo
Price: 376.69 USD
Availability: InStock

Save $150.68

$527.37

$527.37 - $527.37

$527.37

$376.69

$376.69 - $376.69

$376.69

Banjo® Liquid Handling Products
KZ Valve | ACTUATOR ONLY for RAVEN Anhydrous Ammonia (NH3) Actuated Valves

Specifications for Variant SKU: KZ-K0HU0-CF1 Banjo
Brand:	KZ Valve
Series:	EH2 Actuator Series

Part Number	Actuator Series	Control Type	For Valve Brand	For Valve Sizes	Cycle Time	Retrofit Actuator Mounting Kit Required
KZ-20DY0-CF1*	EH2	Fast Rate	Raven	1 - 1 1/2"	1.5 SEC	KZ-KRKIT For 1" & 1 1/4" Raven Valves KZ-KR15KIT For 1-1/2" Raven Valves
KZ-10DY0-CF1*	EH2	ON/OFF	Raven	1 - 1 1/2"	1.5 SEC	KZ-KRKIT For 1" & 1 1/4" Raven Valves KZ-KR15KIT For 1-1/2" Raven Valves
KZ-K0HU0-CF1*	EH2	Standard Rate	Raven	1 - 1 1/2"	8.0 SEC	KZ-KRKIT For 1" & 1 1/4" Raven Valves KZ-KR15KIT For 1-1/2" Raven Valves
KZ-20E8S-C01	EH9	Fast Rate	KZValve	Up To 1"	1.5 SEC	-
KZ-1CE9S-D01	EH9	ON/OFF	KZValve	Up To 1"	0.7 SEC	-
KZ-20E7S-D01	EH9	Standard Rate	KZValve	Up To 1"	3 SEC	-
KZ-20E8S-D01	EH9	Fast Rate	KZValve	Up To 1"	1.7 SEC	-
KZ-1AE9S-C01	EH9	ON/OFF	KZValve	Up To 1"	0.7 SEC	-

* These actuators are designed to replace Raven actuators on Raven valves. They require a retrofit actuator mounting kit.
