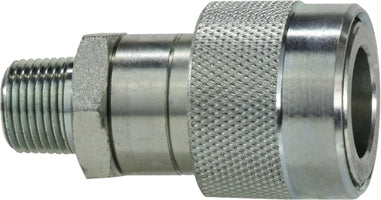

KZEB38SM (KZE-B-38-SM) Midland Hydraulic Quick Disconnect - Thread Lock Hydraulic Jack Coupler - 3/8" Body Size - 3/8" Male NPT - Steel

KZEB38SM by Midland | Hydraulic Quick Disconnect | Thread Lock Hydraulic Jack Coupler | 3/8" Body Size | 3/8" Male NPT | Steel

Save $3.48

$22.41

$22.41 - $22.41

$22.41

$18.93

$18.93 - $18.93

$18.93

Midland Industries
Hydraulic Quick Disconnects: Thread Lock Hydraulic Jack Coupler - Steel

Thread lock couplings with their threaded union locking system and precision ball-type check valves are designed for extreme high pressure applications such as portable hydraulic jacks.

Inventory @ Manufacturers Warehouse: 303 Units

Quantity

Specifications for Variant SKU: KZEB38SM Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male Thread Lock Hydraulic Jack QD Interchange, 3/8in Male NPT
Material(s):	Steel
Seal Material(s):	NBR

Features:
Ball Type Standard seal material is NBR Temperature Range -20°C +120°C

Thread Lock Hydraulic Jack Male Coupler									Thread Lock Hydraulic Jack Female Plug


Part Number	Body Size	Male NPT	LS	D	Hex	A	Rated Pressure	Rated Flow	Part Number	Body Size	Female NPT	LP	D	Hex	A	Rated Pressure	Rated Flow
KZEB14SM (KZE-B-14-SM)	1/4"	1/4"	2.40"	1.14"	0.87"	0.55"	10,000 PSI	3 GPM	KZEB14PF (KZE-B-14-PF)	1/4"	1/4"	1.30"	0.44"	0.75"	0.51"	10,000 PSI	3 GPM
KZEB38SM (KZE-B-38-SM)	3/8"	3/8"	2.91"	-	0.98"	0.57"	10,000 PSI	6 GPM	KZEB38PF (KZE-B-38-PF)	3/8"	3/8"	1.38"	0.63"	1.26"	0.55"	10,000 PSI	6 GPM
