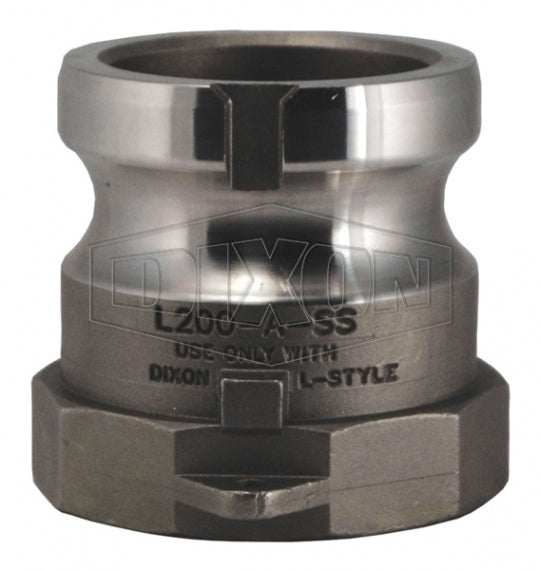

L200-A-SS by Dixon Valve | Vent-Lock® Safety Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | 316 Stainless Steel

L200-A-SS by Dixon Valve | Vent-Lock® Safety Cam & Groove Adapter | Type A | 2" Adapter x 2" Female NPT | 316 Stainless Steel

Save $4.09 Save $4.09
$54.24
$54.24 - $54.24
$54.24
$50.15
$50.15 - $50.15
$50.15

Dixon Valve
Vent-Lock® Safety Cam & Groove | Type A | Adapter x Female NPT

Transfer of fluids and solids, with a safer disconnection.
Specifications for Variant SKU: L200-A-SS Dixon
Brand: Vent-Lock, King Crimp
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 2in Male Cam & Groove, 2in Female NPT
Material(s): 316 Stainless Steel
Features:
  • Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies.
  • Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids.
  • Does not interchange with standard cam & groove products; use only with Dixon L-style fittings.
  • Safety orange cam arms.
Specifications:
  • Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed.
    • 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI.
    • 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI.
    • 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Size
L100-A-SS - 1"
L150-A-SS - 1-1/2"
L200-A-SS - 2"
L300-A-SS - 3"
- L400-A-AL 4"

Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70°F (21°C) with standard Nitrile Rubber seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon.

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
