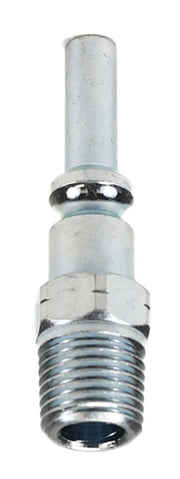

L2M2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | L-Series | 1/4" Male NPT x 1/4" Lincoln Interchange | Plug | Steel

Save $1.70

$4.25

$4.25 - $4.25

$4.25

$2.55

$2.55 - $2.55

$2.55

Dixon Valve & Coupling
Pneumatic Coupling: L-Series Lincoln Interchange Plug (Male Threads)

Specifications for Variant SKU: L2M2 Dixon
Series:	L-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Lincoln QD Interchange, 1/4in Male NPTF
Material(s):	Steel

Compatibility & Interchange:	Lincoln Long-Nose Automotive Interchange Parker 70-Series, Tomco Series-1110, Coilhose Type-17
Construction:	Machined components are manufactured using solid bar stock.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

L-Series \| Lincoln Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Max. Operating Pressure	Burst Pressure
L2M2	Plug/Male	1/4"	1/4" - 18 Male NPT	Steel	2.25" (57.2mm)	0.65" (16.5mm)	9/16"	300 PSI (21 bar)	5000 PSI (345 bar)

L-Series \| Lincoln Interchange Coupler (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2LM2-B	Socket/Female	1/4"	1/4" - 18" Male NPT	Brass	2.62" (66.5mm)	0.90" (22.9mm)	3/4"	300 PSI (21 bar)	5000 PSI (345 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
