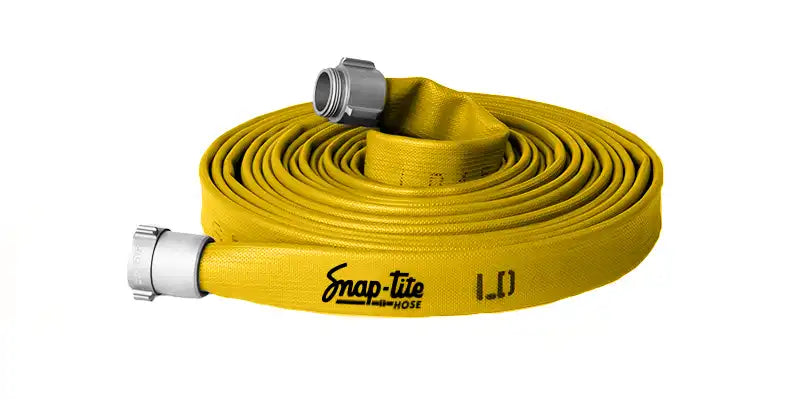

LD25X50Y25N by Snap-Tite | LD Series | Nitrile Fire Hose Assembly with Nylon Reinforcement | 2-1/2" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 300 PSI | Yellow | 50ft Length
Snap-Tite Hose
LD™ - LIGHTWEIGHT EXTRUDED RUBBER HOSE
Snap-Tite Hose
LD™ - LIGHTWEIGHT EXTRUDED RUBBER HOSE
| Specifications for Variant SKU: LD25X50Y25N Snap-Tite | |
|---|---|
| Series: | LD Series |
| Hose Color(s): | Yellow |
| Internal Diameter: | 2-1/2in |
| Tubing Construction: | Nylon |
| Cover Construction: | Nitrile |
| Ends Configuration: | 2-1/2in Male NH, 2-1/2in Female NH |
| Material(s): | Aluminum |
| Applicable Specs & Approvals: | NSF Standard 61, UL/ULC Certified |
| Model: | LD™ | ||
|---|---|---|---|
| Basic Construction: | Nitrile rubber thru-the-weave with nylon reinforcing jacket | ||
| Application: | Attack | ||
| Colors: | Yellow, Red, Blue | ||
| Temperature Range: | -40° F - 200° F | ||
| Description: | |||
| LD™ is a premium quality extruded thru-the-weave, nitrile rubber hose. It is easily coiled, non-kinking, high flow, lightweight hose that resists abrasion, chemicals, and weathering by ozone. | |||
| Features: | |||
|
|||
| Yellow | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size |
Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Coupling Type |
Testing Pressures (PSI) | Weight (LBS/FT) |
Abrasion Resistance |
|||
| Working | Proof | Burst | Uncoupled | # of Taber Abrasion Cycles (H-22 wheel) | ||||||
| 1-1/2" | LD15X25Y15N | LD15X50Y15N | LD15X100Y15N | Standard | 300 psi | 600 psi | 900 psi | 0.20 | 4,300 | |
| LD15X25Y15NBR | LD15X50Y15NBR | LD15X100Y15NBR | Brass Rocker Lugs | |||||||
| 2-1/2" | LD25X25Y25N | LD25X50Y25N | LD25X100Y25N | Standard | 300 psi | 600 psi | 900 psi | 0.40 | 8,500 | |
| LD25X25Y25NBR | LD25X50Y25NBR | LD25X100Y25NBR | Brass Rocker Lugs | |||||||
| Red | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size |
Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Coupling Type |
Testing Pressures (PSI) | Weight (LBS/FT) |
Abrasion Resistance |
|||
| Working | Proof | Burst | Uncoupled | # of Taber Abrasion Cycles (H-22 wheel) | ||||||
| 1-1/2" | LD15X25R15N | LD15X50R15N | LD15X100R15N | Standard | 300 psi | 600 psi | 900 psi | 0.20 | 4,300 | |
| LD15X25R15NBR | LD15X50R15NBR | LD15X100R15NBR | Brass Rocker Lugs | |||||||
| 2-1/2" | LD25X25R25N | LD25X50R25N | LD25X100R25N | Standard | 300 psi | 600 psi | 900 psi | 0.40 | 8,500 | |
| LD25X25R25NBR | LD25X50R25NBR | LD25X100R25NBR | Brass Rocker Lugs | |||||||
| Blue | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size |
Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Coupling Type |
Testing Pressures (PSI) | Weight (LBS/FT) |
Abrasion Resistance |
|||
| Working | Proof | Burst | Uncoupled | # of Taber Abrasion Cycles (H-22 wheel) | ||||||
| 1-1/2" | LD15X25B15N | LD15X50B15N | LD15X100B15N | Standard | 300 psi | 600 psi | 900 psi | 0.20 | 4,300 | |
| LD15X25B15NBR | LD15X50B15NBR | LD15X100B15NBR | Brass Rocker Lugs | |||||||
| 2-1/2" | LD25X25B25N | LD25X50B25N | LD25X100B25N | Standard | 300 psi | 600 psi | 900 psi | 0.40 | 8,500 | |
| LD25X25B25NBR | LD25X50B25NBR | LD25X100B25NBR | Brass Rocker Lugs | |||||||
*1-year warranty.
*2-1/2” is UL/ULC Certified
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
