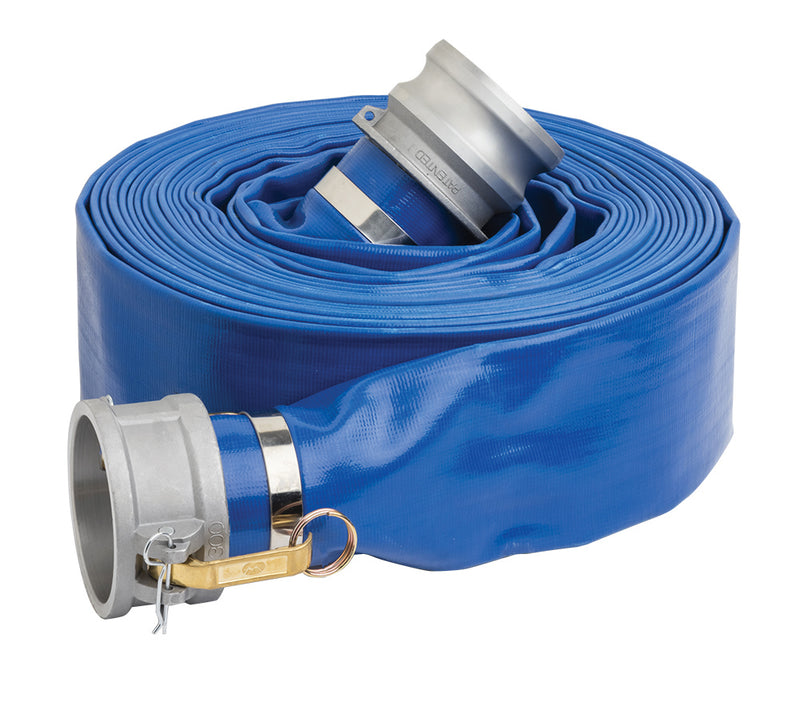

LF200ACEX50 by Kuriyama | LF-ACE Series | Layflat Hose Assembly | PVC | 2" Size | Blue | Male x Female Camlock Couplings | Aluminum | 50ft Length

LF200ACEX50 by Kuriyama | LF-ACE Series | Layflat Hose Assembly | PVC | 2" Size | Blue | Male x Female Camlock Couplings | Aluminum | 50ft Length

Save $83.20 Save $83.20
$152.07
$152.07 - $152.07
$152.07
$68.87
$68.87 - $68.87
$68.87

Kuriyama
LF-APL Series | Layflat Hose Assembly | Male x Female Camlock Couplings

Designed for agriculture, construction, contractor, industrial, and rental applications.
Specifications for Variant SKU: LF200ACEX50 Kuriyama
Series: LF-ACE Series
Hose Color(s): Blue
Tubing Construction: PVC
Cover Construction: PVC
Material(s): Aluminum

SPECIFICATIONS

Applications: Agriculture
Construction
Contractor
Industrial
Rental
Construction: Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation. Aluminum Couplings.
Service Temperature Range: -10°F (-12°C) to +140°F (+60°C)
Other Features:
  • Smooth Tube - Provides low friction loss.
  • Storage - Hose coils flat for easy storage.
Part Number
Male x Female
Pin Lug Couplings
50ft		 Part Number
Male x Female
Camlock Couplings
50ft		 Size Wall
Thickness		 Working
Pressure
(PSI)
(in) (mm) (in) at 68°F
LF150APLX50 LF150ACEX50 1-1/2" 38.1mm 0.059" 70 PSI
LF200APLX50 LF200ACEX50 2" 50.8mm 0.063" 65 PSI
LF300APLX50 LF300ACEX50 3" 76.2mm 0.067" 60 PSI
LF400APLX50 LF400ACEX50 4" 101.6mm 0.067" 50 PSI
