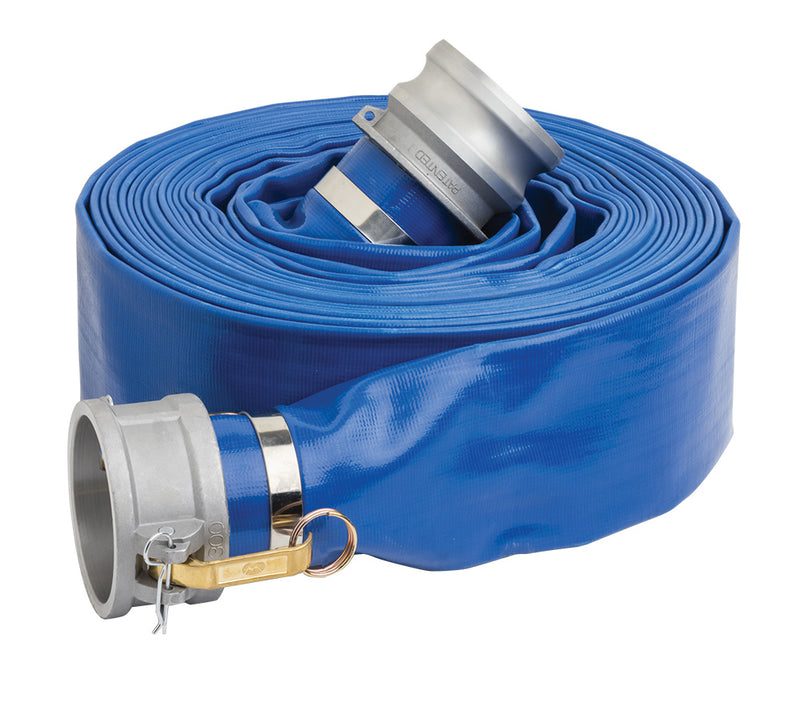

LF300ACEX50 by Kuriyama | LF-ACE Series | Layflat Hose Assembly | PVC | 3" Size | Blue | Male x Female Camlock Couplings | Aluminum | 50ft Length

Save $88.51

$202.55

$202.55 - $202.55

$202.55

$114.04

$114.04 - $114.04

$114.04

Kuriyama
LF-APL Series | Layflat Hose Assembly | Male x Female Camlock Couplings

Designed for agriculture, construction, contractor, industrial, and rental applications.

Specifications for Variant SKU: LF300ACEX50 Kuriyama
Series:	LF-ACE Series
Hose Color(s):	Blue
Tubing Construction:	PVC
Cover Construction:	PVC
Material(s):	Aluminum

SPECIFICATIONS

Other Features:
Applications:	Agriculture Construction Contractor Industrial Rental
Construction:	Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation. Aluminum Couplings.
Service Temperature Range:	-10°F (-12°C) to +140°F (+60°C)
Smooth Tube - Provides low friction loss. Storage - Hose coils flat for easy storage.

Part Number Male x Female Pin Lug Couplings 50ft	Part Number Male x Female Camlock Couplings 50ft	Size		Wall Thickness	Working Pressure (PSI)
Part Number Male x Female Pin Lug Couplings 50ft	Part Number Male x Female Camlock Couplings 50ft	(in)	(mm)	(in)	at 68°F
LF150APLX50	LF150ACEX50	1-1/2"	38.1mm	0.059"	70 PSI
LF200APLX50	LF200ACEX50	2"	50.8mm	0.063"	65 PSI
LF300APLX50	LF300ACEX50	3"	76.2mm	0.067"	60 PSI
LF400APLX50	LF400ACEX50	4"	101.6mm	0.067"	50 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
