LLRD-MM04X100 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 1/4" ID | 0.50" OD | 1/4" Male NPTF x 1/4" Male NPTF | Red | 100ft Length

Name: LLRD-MM04X100 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 1/4" ID | 0.50" OD | 1/4" Male NPTF x 1/4" Male NPTF | Red | 100ft Length
Brand: Kuriyama
SKU: LLRD-MM04X100 Kuriyama
Price: 129.51 USD
Availability: InStock

Save $62.68

$192.19

$192.19 - $192.19

$192.19

$129.51

$129.51 - $129.51

$129.51

Kuriyama
Piranha® | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | Red Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.

Specifications for Variant SKU: LLRD-MM04X100 Kuriyama
Brand:	Piranha
Series:	LLRD Series
Hose Color(s):	Red
Internal Diameter:	0.25in - 1/4in
Outer Diameter:	0.50in
Cover Construction:	Polyurethane
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 1/4in Male NPTF, Some Ends Match

SPECIFICATIONS

Other Features:
Applications:	Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.

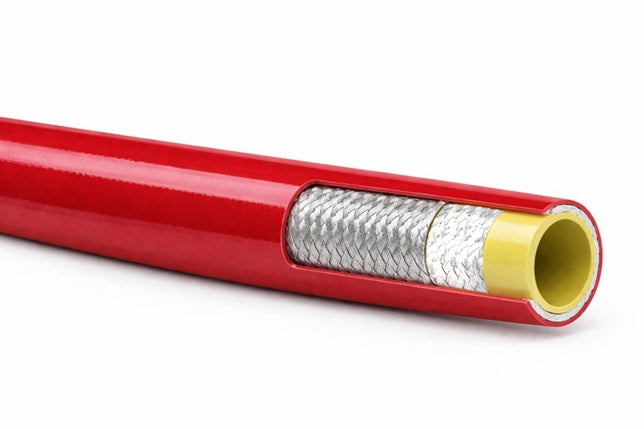

Tube:	Yellow seamless thermoplastic tube.	Reinforcement:	Double high tensile synthetic fiber braid.
Cover:	Abrasion resistant red polyurethane.	Service Temperature Range:	-40°F (-40°C) to +150°F (+66°C)
Specifications:	-

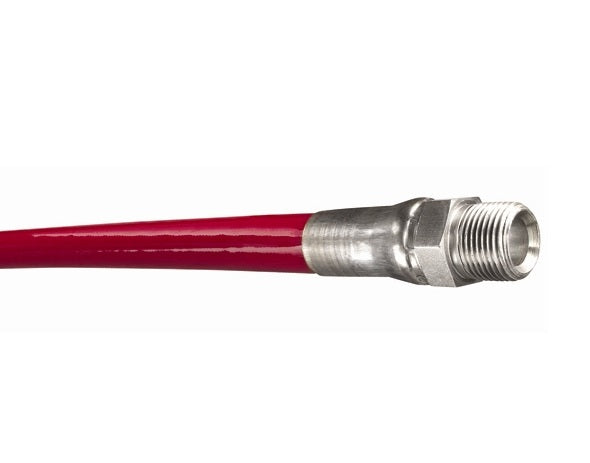

Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions. Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product. Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis. High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption. Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance. End Fittings - Hoses are assembled Male x Male NPT threads as a standard. Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.

Part Number Male x Male NPTF	ID		OD		Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
Part Number Male x Male NPTF	(in)	(mm)	(in)	(mm)	(psi)	(bar)	(psi)	(bar)	(in)	(mm)	(ft)	(lbs/ft)
LLRD-MM04X50	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	50ft	0.05 lbs
LLRD-MM04X100	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	100ft	0.05 lbs
LLRD-MM04X150	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	150ft	0.05 lbs
LLRD-MM04X200	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	200ft	0.05 lbs
LLRD-MM04X300	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	300ft	0.05 lbs
LLRD-MM04X600	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	600ft	0.05 lbs

LLRD-MM06X100	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	100ft	0.13 lbs
LLRD-MM06X150	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	150ft	0.13 lbs
LLRD-MM06X200	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	200ft	0.13 lbs
LLRD-MM06X300	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	300ft	0.13 lbs
LLRD-MM06X600	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	600ft	0.13 lbs

LLRD-MM08X300	1/2"	12.8mm	0.80"	20.2mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	4.00"	101.6mm	300ft	0.13 lbs
LLRD-MM08X500	1/2"	12.8mm	0.80"	20.2mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	4.00"	101.6mm	500ft	0.13 lbs
LLRD-MM08X600	1/2"	12.8mm	0.80"	20.2mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	4.00"	101.6mm	600ft	0.13 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
