LLRD-MM06X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Red | 300ft Length
LLRD-MM06X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Red | 300ft Length
LLRD-MM06X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Red | 300ft Length

LLRD-MM06X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Red | 300ft Length

Save $109.07 Save $109.07
$572.54
$572.54 - $572.54
$572.54
$463.47
$463.47 - $463.47
$463.47

Kuriyama
Piranha® | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | Red Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.
Specifications for Variant SKU: LLRD-MM06X300 Kuriyama
Brand: Piranha
Series: LLRD Series
Hose Color(s): Red
Internal Diameter: 0.375in - 3/8in
Outer Diameter: 0.65in
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match

SPECIFICATIONS

Applications: Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.

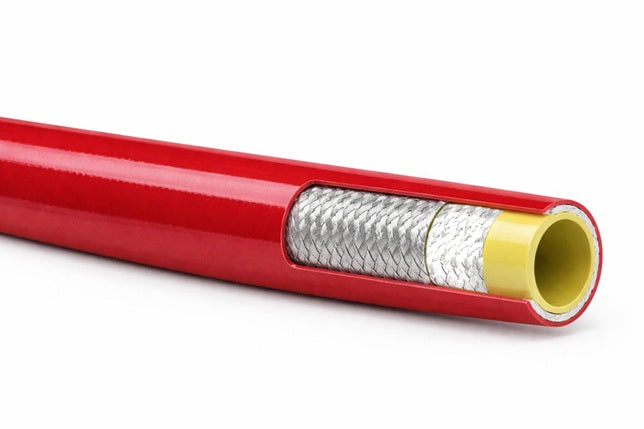

Tube: Yellow seamless thermoplastic tube. Reinforcement: Double high tensile synthetic fiber braid.
Cover: Abrasion resistant red polyurethane. Service Temperature Range: -40°F (-40°C) to +150°F (+66°C)
Specifications: -
Other Features:
  • Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions.
  • Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product.
  • Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis.
  • High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
  • Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance.

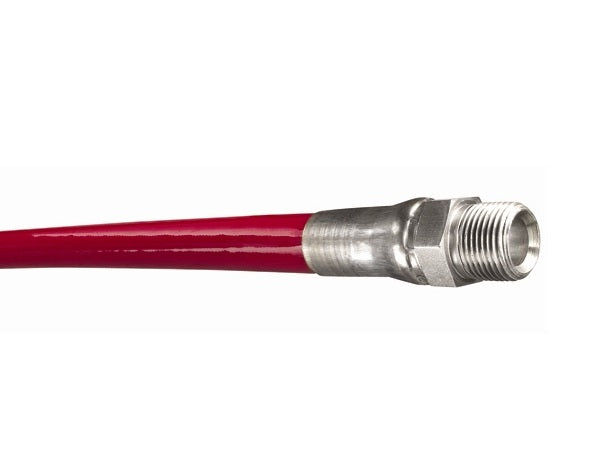

  • End Fittings - Hoses are assembled Male x Male NPT threads as a standard.
  • Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.
Part Number
Male x Male NPTF		 ID OD Max.
Working
Pressure		 Min.
Burst
Pressure		 Min.
Bend
Radius		 Length Weight
(in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (in) (mm) (ft) (lbs/ft)
LLRD-MM04X50 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 50ft 0.05 lbs
LLRD-MM04X100 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 100ft 0.05 lbs
LLRD-MM04X150 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 150ft 0.05 lbs
LLRD-MM04X200 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 200ft 0.05 lbs
LLRD-MM04X300 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 300ft 0.05 lbs
LLRD-MM04X600 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 600ft 0.05 lbs

LLRD-MM06X100 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 100ft 0.13 lbs
LLRD-MM06X150 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 150ft 0.13 lbs
LLRD-MM06X200 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 200ft 0.13 lbs
LLRD-MM06X300 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 300ft 0.13 lbs
LLRD-MM06X600 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 600ft 0.13 lbs

LLRD-MM08X300 1/2" 12.8mm 0.80" 20.2mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 4.00" 101.6mm 300ft 0.13 lbs
LLRD-MM08X500 1/2" 12.8mm 0.80" 20.2mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 4.00" 101.6mm 500ft 0.13 lbs
LLRD-MM08X600 1/2" 12.8mm 0.80" 20.2mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 4.00" 101.6mm 600ft 0.13 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
