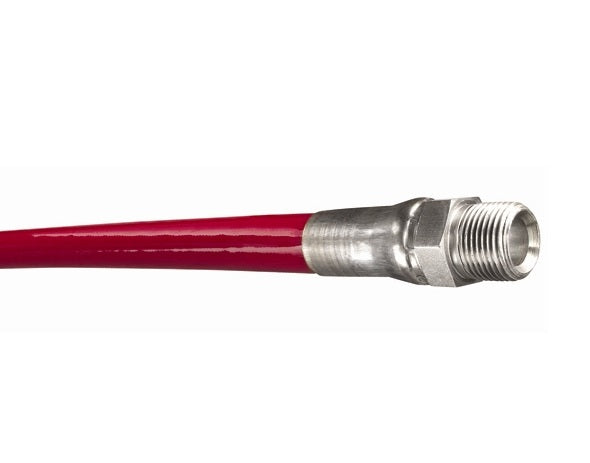

LLRD-MM08X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 1/2" ID | 0.80" OD | 1/2" Male NPTF x 1/2" Male NPTF | Red | 300ft Length
LLRD-MM08X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 1/2" ID | 0.80" OD | 1/2" Male NPTF x 1/2" Male NPTF | Red | 300ft Length
LLRD-MM08X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 1/2" ID | 0.80" OD | 1/2" Male NPTF x 1/2" Male NPTF | Red | 300ft Length

LLRD-MM08X300 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 1/2" ID | 0.80" OD | 1/2" Male NPTF x 1/2" Male NPTF | Red | 300ft Length

Save $301.86 Save $301.86
$1,568.31
$1,568.31 - $1,568.31
$1,568.31
$1,266.45
$1,266.45 - $1,266.45
$1,266.45

Kuriyama
Piranha® | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | Red Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.
Specifications for Variant SKU: LLRD-MM08X300 Kuriyama
Brand: Piranha
Series: LLRD Series
Hose Color(s): Red
Internal Diameter: 0.50in - 1/2in
Outer Diameter: 0.80in
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, Some Ends Match

SPECIFICATIONS

Applications: Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.
Tube: Yellow seamless thermoplastic tube. Reinforcement: Double high tensile synthetic fiber braid.
Cover: Abrasion resistant red polyurethane. Service Temperature Range: -40°F (-40°C) to +150°F (+66°C)
Specifications: -
Other Features:
  • Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions.
  • Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product.
  • Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis.
  • High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
  • Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance.
  • End Fittings - Hoses are assembled Male x Male NPT threads as a standard.
  • Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.
Part Number
Male x Male NPTF		 ID OD Max.
Working
Pressure		 Min.
Burst
Pressure		 Min.
Bend
Radius		 Length Weight
(in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (in) (mm) (ft) (lbs/ft)
LLRD-MM04X50 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 50ft 0.05 lbs
LLRD-MM04X100 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 100ft 0.05 lbs
LLRD-MM04X150 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 150ft 0.05 lbs
LLRD-MM04X200 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 200ft 0.05 lbs
LLRD-MM04X300 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 300ft 0.05 lbs
LLRD-MM04X600 1/4" 6.4mm 0.50" 12.6mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 2.50" 63.5mm 600ft 0.05 lbs

LLRD-MM06X100 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 100ft 0.13 lbs
LLRD-MM06X150 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 150ft 0.13 lbs
LLRD-MM06X200 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 200ft 0.13 lbs
LLRD-MM06X300 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 300ft 0.13 lbs
LLRD-MM06X600 3/8" 9.7mm 0.65" 16.5mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 3.00" 76.2mm 600ft 0.13 lbs

LLRD-MM08X300 1/2" 12.8mm 0.80" 20.2mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 4.00" 101.6mm 300ft 0.13 lbs
LLRD-MM08X500 1/2" 12.8mm 0.80" 20.2mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 4.00" 101.6mm 500ft 0.13 lbs
LLRD-MM08X600 1/2" 12.8mm 0.80" 20.2mm 5000 PSI 344.7 bar 12500 PSI 861.8 bar 4.00" 101.6mm 600ft 0.13 lbs
