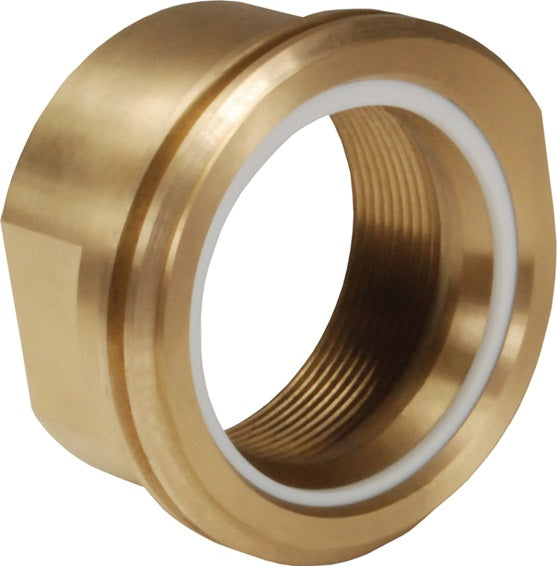

LNG30BRFE-NC by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Fixed End With 3" Female NPT Thread | Brass

LNG30BRFE-NC by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Fixed End With 3" Female NPT Thread | Brass

Save $67.89 Save $67.89
$610.99
$610.99 - $610.99
$610.99
$543.10
$543.10 - $543.10
$543.10

Dixon Valve
Liquid Natural Gas Coupling | Fixed End

For safe and reliable transfer of cryogenic liquefied natural gas (LNG) products to transport equipment such as cargo tanks, portable tanks, and liquefied natural gas liquid production facilities.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: LNG30BRFE-NC Dixon
Material(s): Brass
Features:
  • Fixed end design threads on tank truck pipe connection line, manifold, pipe outlet, or pipe connection.
  • PTFE gasket reduces force needed to make a tight connection.
  • Connect by hammering the acme threaded nut onto a fixed end.
  • Hose end designed female NPT thread attached to hose end.
  • Snap ring keeps connection nut in place for easier connecting.
  • Hose end lugs intended to be struck with a non-sparking hammer or similar non-sparking device.
Construction:
  • Body: Brass
  • Seal: PTFE
Specifications:
  • Meets CGA V-6 LNG-30 guidelines.
  • Compatible with LNG couplings made to CGA guidelines.
  • Temperature as low as -320°F (-196°C) at standard LNG transfer pressures.
  • 450 PSI working pressure with 4 to 1 safety factor
Part Size Description
LNG20BRFE 2" LNG30 Fixed End With 2" Female NPT Thread / Cap & Retaining Cable
LNG30BRFE 3" LNG30 Fixed End With 3" Female NPT Thread / Cap & Retaining Cable
LNG30BRFE-NC 3" LNG30 Fixed End With 3" Female NPT Thread
LNG30FESEAL 3" LNG30 PTFE Seal
LNGBRFECAP - Cap for LNG30BRFE and LNG20BRFE
