M16-03A Wilkerson by Dixon Valve | M16-Series | Compact Coalescing Filter | 3/8" Size | 44.7 SCFM | Automatic Drain | 2.7 oz Compact Transparent Bowl & Guard

M16-03A Wilkerson by Dixon Valve | M16-Series | Compact Coalescing Filter | 3/8" Size | 44.7 SCFM | Automatic Drain | 2.7 oz Compact Transparent Bowl & Guard

Save $172.77 Save $172.77
$431.93
$431.93 - $431.93
$431.93
$259.16
$259.16 - $259.16
$259.16

Dixon Valve

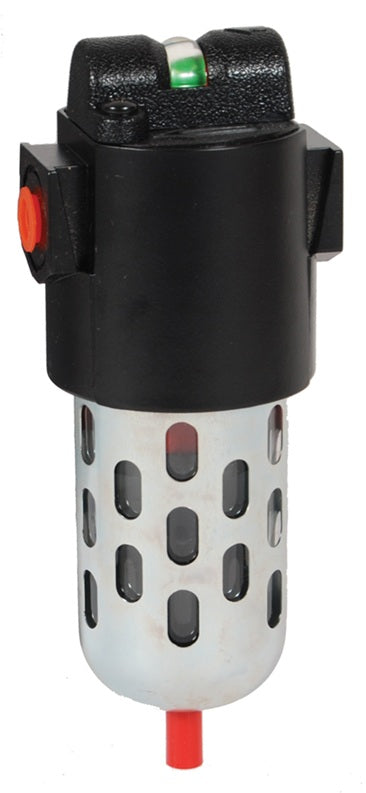

Wilkerson | M16-Series | Compact Coalescing Filter

For air service only.

Removes extremely fine oil mists, oil aerosols, and microscopic particles

- 0.01 micron type C element
- 2.7 oz. bowl
Specifications for Variant SKU: M16-03A Dixon
Brand: Wilkerson
Series: M16-Series
Features:
  • 0.01 micron type C element.
  • 2.7 oz. bowl.
  • Can be installed in modular system.
  • Removes extremely fine oil mists, oil aerosols, and microscopic particles.
  • A standard airline filter should be installed as a pre-filter when using a coalescing filter.
  • Differential pressure indicator changes from green to red with pressure loss.
Specifications:
  • Maximum operating conditions: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C)
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
With Compact Transparent Bowl and Guard Size Flow (SCFM)
Part Number
Automatic Drain		 Part Number
Manual Drain
M16-02A M16-02M 1/4" 37.0 SCFM
M16-03A M16-03M 3/8" 44.7 SCFM
M16-04A M16-04M 1/2" 46.1 SCFM
