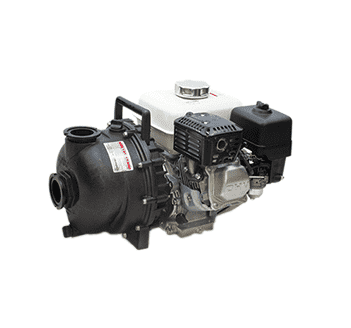

M220PH6 Banjo Polypropylene Super 2 Manifold Pump with Gas Engine - 2" - 6.5 HP Honda® Engine

M220PH6 by Banjo | Centrifugal Pumps for Manifold Pump with Gas Engine | 2" Full Port with 6.5 HP Honda® Engine | Polypropylene

Save $698.93 Save $698.93
$1,747.33
$1,747.33 - $1,747.33
$1,747.33
$1,048.40
$1,048.40 - $1,048.40
$1,048.40

Banjo Self-Priming Centrifugal Pumps - "Super 2" 2" Polypropylene Manifold SUPER Pumps with Gas Engines & Replacement Parts The M230 Super Pump Series have become the M220 Super Pump Series
Specifications for Variant SKU: M220PH6 Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Features:
  • High performance impeller for maximum flow! 255 GPM!
  • Precision molded construction
  • Lightweight
  • Corrosion resistant
  • Superior design
  • Low maintenance
  • EPDM Standard, FKM (viton type) available
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
  • Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower EPDM Seal Kit Number FKM Seal Kit Number
2" Super Poly Manifold Pumps with Gas Engines
M220PH5 2" Poly Manifold Pump with 5.5 HP Honda® Gas Engine 5.5 HP 13999 13999V (Made to Order)
M220PH6 2" FP Manifold Super Pump with 6.5 HP Honda® Gas Engine 6.5 HP 13999 13999V ---
M220P6PRO 2" FP Manifold Super Pump with 6.5 HP Briggs & Stratton® Pro Series Engine 6.5 HP 13999 13999V ---
2" Poly Manifold Pumps ONLY
M220PO 2" Poly Manifold Pump Only with 3/4" Shaft & 4 Vane Impeller N/A 13999 13999V (Made to Order)

Replacement Parts for 2" SUPER Manifold Poly Pumps
Item Part Number Description
1 12703A Rear Bracket
2 13702 Volute
3 M12712 Body Assembly
Not Shown 12099 7/16"-14 x 1.25" HHCS
N/A 12000A 5 Vane Impeller Repair Kit (Items 4-8, 10, 14, 18, 23 & 12099)
N/A 12000AV FKM(viton type) Impeller Repair Kit (Items 4-8, 10, 14, 18, 22, 23 & 12099)
N/A 12999A Pump Seal/O-Ring Kit (Items 4-7, 10, 18, 23 & 12099)
N/A 12999AV FKM(viton type) Pump Seal/O-Ring Kit (Items 4-7, 10, 18, 23 & 12099)
N/A 13999 EPDM Seal Kit
N/A 13999V FKM Seal Kit
